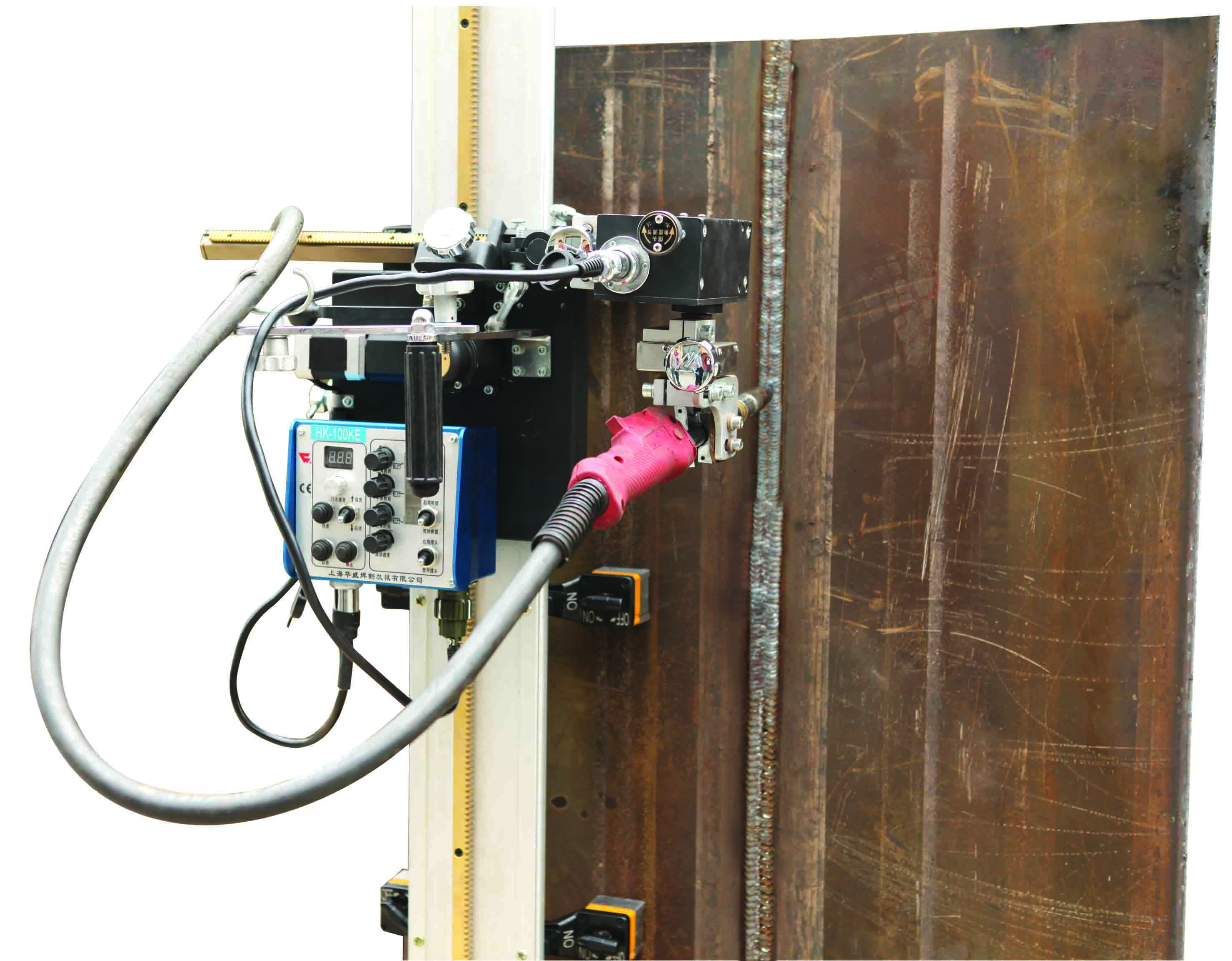

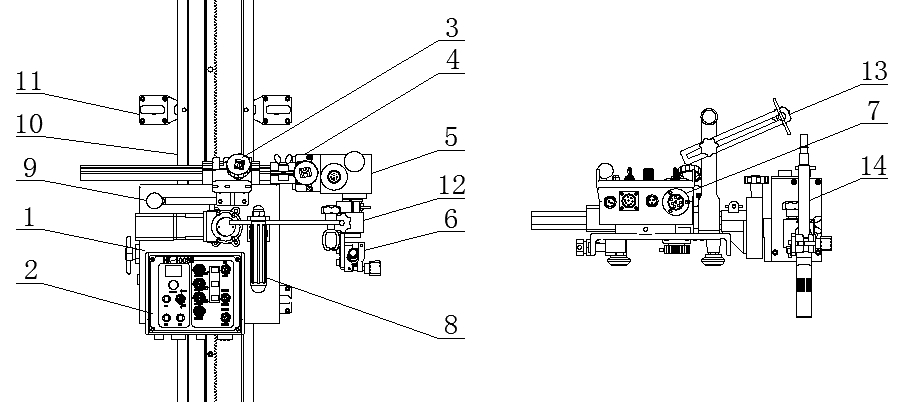

HK-100KE is made up of body, control case, X-Y slide blocks, blowtorch holder, guide wheel and straight track.

１）Body: It is the driving device, which includes motor, planet reducing box, driving gear and track wheel.

２）Control casing: To control the movement of carriage. Please refer to control panel manual.

３）Cross device: You can use it in the process of straight welding (such as container case) to adjust the position of torch in case of moving track.

４）Welding torch lifting slider: It is a device for adjusting the welding torch location, could do the up and down fine-tuning during welding.

５）Swing device: To execute various welding model.

６）Welding gun holder: It is a device for fixing the welding gun, when using it, should clamp the welding gun, be careful not to clamp the conductive parts, otherwise it will cause a short circuit or electric shock.

７）Ten-core socket: It is a swing controller’s cable connection socket, the connection cable is about 1 meter long, and the other end of cable is the eight-core plug, which is connected to the swinger socket.

８）Hand knob：It is used to move this machine. Please hold it fully.

９）The clutch handle: press the handle, make the gear out, to achieve machine’s fast move.

１０）Straight track: It is equipped with permanent magnet to make the track absorb to works to meet different welding needs.

１１）Magnet: Strong on-off magnet. If you want to move the track, please turn all magnetron switches “OFF”.

１２）Welding gun fine-adjusting device: can accurately guide the welding gun to aim welding position.

１３）Cable bracket: You can use it to carry cable to reduce the load of swing machine

１４）Blowtorch: User can choose straight blowtorch or bend blowtorch.
