Key Features

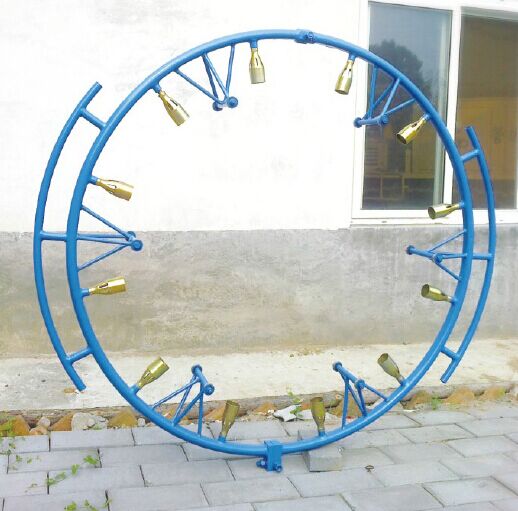

Pipe Fired Ring Heater are widely applied on steel pipe preheating prior to welding.
To fuel with liquefied flammable gas, pipes are preheated by the flame from jet nozzles in uniform distribution around the ring, There are 6 symmetrical rollers on the flame heater, running along the preheated pipe, to ensure even heating effect, Its hinged split semicircle design is for easy installation.
Specification
| Model | RQ-14 | RQ-16 | RQ-20 | RQ-24 | RQ-26 | RQ-28 | RQ-32 | RQ-36 | RQ-40 | RQ-48 | RQ-58 | RQ-66 | RQ-80 |
| Applicable pipe diameter(mm) | φ355 | φ406 | φ508 | φ610 | φ660 | φ711 | φ813 | φ914 | φ1016 | φ1219 | φ1473 | φ1676 | φ2032 |
| Nozzle number | 6 | 6 | 8 | 8 | 10 | 10 | 10 | 12 | 12 | 16 | 18 | 20 | 24 |
