Application

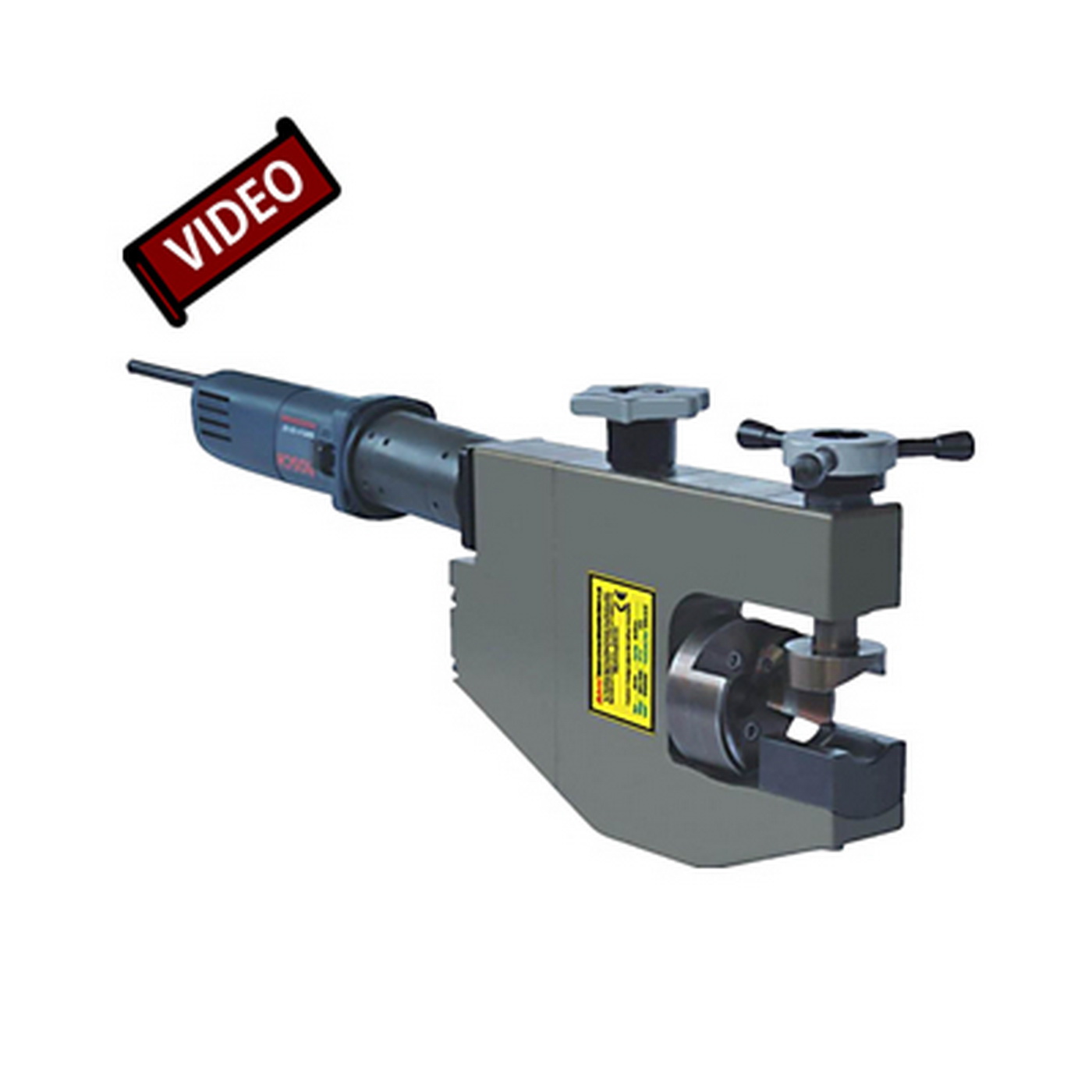

● This machine is designed for pipe end beveling of small diameter, pipe out-mounted compact installation. It is used in pipe end bevelling process of professional equipments and on-site overhaul, e. g. water cooled wall, overheater, reheater, fuel economizer, boiler and fire thermo electricity, etc. It meets the requirement of process: Narrow space of on-site repair and large scale of repairing.
Key Features
● High-quality bevelling tool which can process different grades of carbon steels, alloyed steels, stainless steels, and other materials of metal pipes.
● An outside caliper is fixed in proper position, simple and light, precise centering, steady mount and convenient operation.
● Driven Type: Electrical & Pneumatic
Specification
The pneumatic model adopts pneumatic motor to drive, air working pressure 0.8-1.5Mpa, air consuming flux 1000-1500L/min. It is used for inflammable and dangerous operation places.
| Electric Driven | Pneumatic Driven | Working Range (O.D in mm) |
Wall Thickness (mm) |
Rotating Speed (RPM) |
| ISC-63 | TSC-63 | 38-63 | ≤ 12 | 52 |
| ISC-89 | TSC-89 | 63-89 | ≤ 12 |
50 |
Explosion Diagram
