Please watch the video of the electric driven type( ICE series )
Definition
● Inside Clamping Eelectric(ICE)
● Inside Clamping Pneumatic(ICP)
Main Features
● All pipe end cold beveling machines are available with electrical or pneumatic drive. And the range of the inside diameter from 16mm to 850mm is available.
● Cold Beveling improves safety.
● Fast, Precision, On-site Beveling.
● Light weight and compact design
● Easy set-up & Operation
● Electric or Pneumatic ,and the two motors can be switched.
● Electric Drive(AC 220V,50/60HZ,0.8-1.5Kw).
● Advantage of the pneumatic driven machine : steady move and low noise, specially suitable for inflammable and explosive places. Easy to Maintenance and Occessionally overload won't burn.
● Application: Oil & Gas, Power Plant, Boiler, Chemical Plant, Nuclear Power, Process Plant & Fabrication, Ship Building & Repair.
● CE certificate
Specification
●Driven Type: Pneumatic Driven
●Air working pressure: 0.6-1.5MPA
●Air consumption: 900-1500L/min
| Electric drive |
Pneumatic drive |
Working range (I.D mm) |
Wall thickness (mm) |
Dimension (mm) |
Net weight (kg) |
Gross weight (kg) |

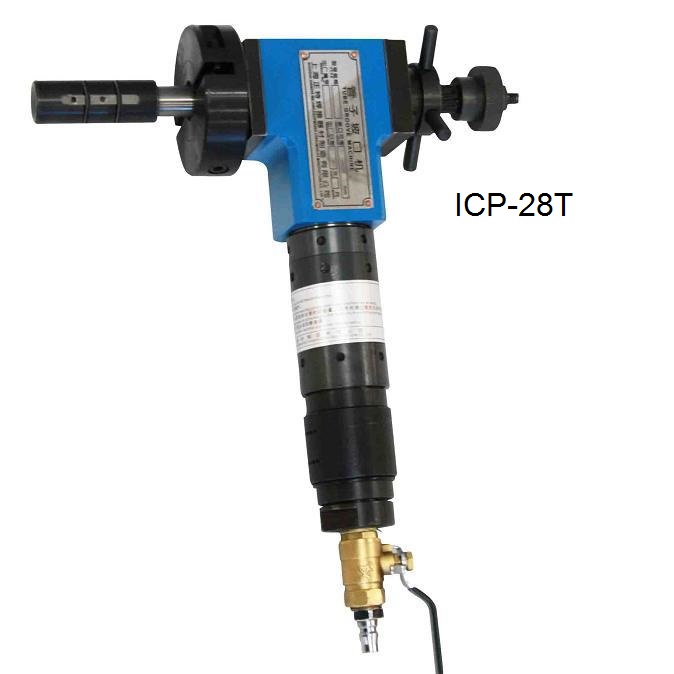

| ICE-28T | ICP-28T | 16-28 | ≤10 | 480x350x130 | 10 | 16 |
| ICE-80T | ICP-80T | 28-76 | ≤15 | 480x350x130 | 10.5 | 17 |
| ICE-150B | ICP-150B | 65-159 | ≤20 | 670x300x200 | 23 | 30 |
| ICE-250B | ICP-250B | 80-240 | ≤20 | 670x350x230 | 31 | 46 |
| ICE-351 | ICP-351 | 150-330 | ≤20 | 750x440x350 | 49 | 71 |
| ICE-630 | ICP-630 | 300-600 | ≤20 | 900x680x420 | 89 | 135 |
| ICE-250-II | ICP-250-II | 80-240 | ≤75 | 670x350x230 | 38 | 53 |
| ICE-351-II | ICP-351-II | 150-330 | ≤75 | 830x560x320 | 54 | 76 |
| ICE-630-II | ICP-630-II | 300-600 | ≤75 | 950x750x420 | 74 | 120 |
| ICE-850-II | ICP-850-II | 500-850 | ≤75 | 1250x1000x950 | 266 | 310 |
The B type machines: Tool feeding by an ratchet handle, easy operation and labour-saving.
The II type machines: Auomatic tool feeding system.Specially used for bevelling heavily thickness pipes upto 75mm.
Beveling Tools Beveling type
Packing List ( click the following models to see the details )

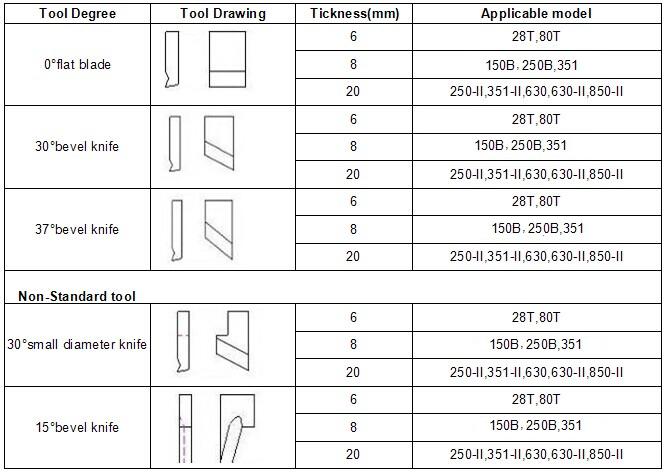

Guidelines for Selecting Tool kits:
