Features:

●  Adopting sensing technolog to achieve track control and avoid the cutting deviation made by pipes.

●  The cutting machine will creep on pipes and send the high- precision location information to control system, then follow the cutting line immediately. Equipment with this system could profile cut any pipes.

●  Portable and Conveniently.

●  Easy to operate.

● The cutting precision is ＜1mm and the cutting roughness is ＜12.5μm

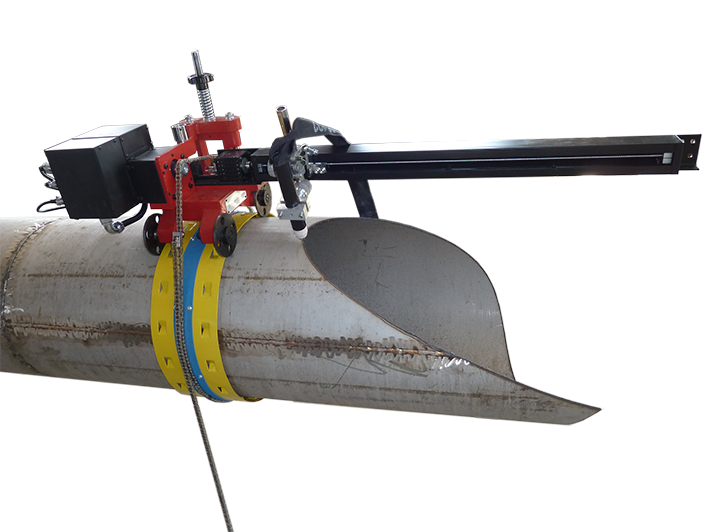

● Both Flame and Plasma cutting are available.

Specification:

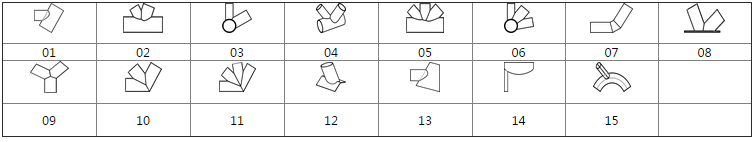

Pattern References

Profile cutting strives from a new SYSTEM

Extremely Delicate & Skillfully Deflected

It's hard to imagine just a light weight TP machine could profile cut pipes with tens of tons weight and several meters length! The equipment with advanced system is the equipment which is so selfwilled.

Easy to learn, self-study is enough

With built-in professional  system, automatically create cutting system after inputting pipe diameter; Mechanically inputting parameters according to hints also can cut out the intersection line you want. All of these benefits from the man-machine dialogue sign in the system.

Only 3 indicator lights to identify working status

There are total 3 indicator lights on the control box of ThinkPipe, working status can be easily judged according to lights' twinkle situation.

24 hours world software service due to the internet

Additionally provided internet upgrade module, customer can worldly enjoy 24hrs software service by inserting network cable into the internet interface of the machine. Making system customization and software purchase easy and quick.
