Key Parameters
Working area (L*W): 3000*1500mm x 2 (Other sizes are customerized)
Laser power: 3000W - 20000W ( Raycus or Max are optional)
Positioning accuracy: ±0.05 mm/m
Repositioning accuracy: ±0.03 mm/m
Max. speed: 150000 mm/min
Video
Features
● Fiber line transmission, no need for adjustment of optical path;
● Precise height control to maintain stable cutting quality;
● The fiber laser cutting machine is 2-3 times quicker in cutting than other cutting machines, especially when cutting thin sheet metals, with high quality cutting results;
● Laser focus can be as small as 25 um, meaning cutting kerf can be very narrow and no deformation will be caused;
● This fiber laser cutting machine is applicable for cutting carbon steel, stainless steel, aluminum and copper;
● Applied in a wide range of industries, including sheet metal processing, digital products and advertising;
● 30% of electricity will be translated into laser energy during the cutting, which is higher than the CO₂ laser cutter (10%-15%) and diode laser cutter (less than 5%);

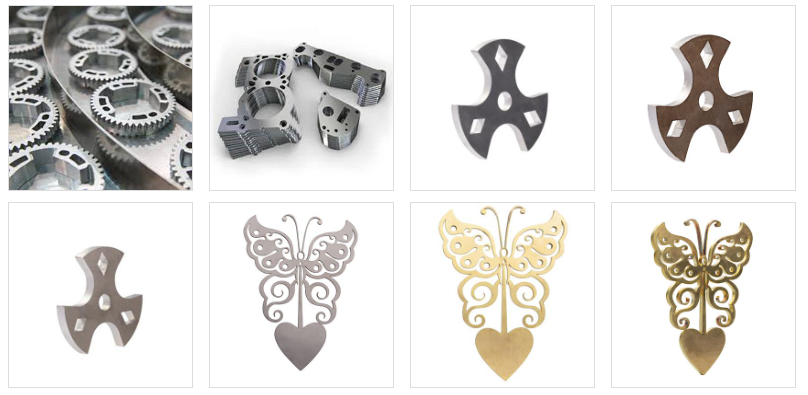

Cutting Samples
Details

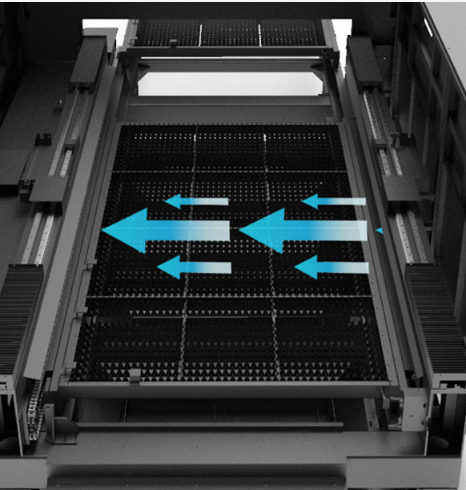

With the demonstration by CAE analysis, the all-steel welded machine bed is characterized by high strength and stability, excellent resistance to wear and corrosion thanks to a 600-degree heat treatment for internal stress relieving. The underlying hollow structure of laser machine bed is constructed with less heating area in mind to prolong its service life. Air assist system means blowing air from side to remove smoke, giving a clean work environment for metal processing.
The open type cutting table is equipped with ball transfer unit that enables workpieces to be loaded and unloaded from three sides, efficiently preventing sheet metal from being scratched.
Intelligent control unit supports remote control, the magnetic design of which provides high flexibility for operator to put and take at any time.
.png)
Monitoring and protection functions for laser system and servo motor are activated to assist operator in accessing to operation status and equipment failure, providing operator with great convenience for maintenance of fiber laser cutting machine.
