Key Features

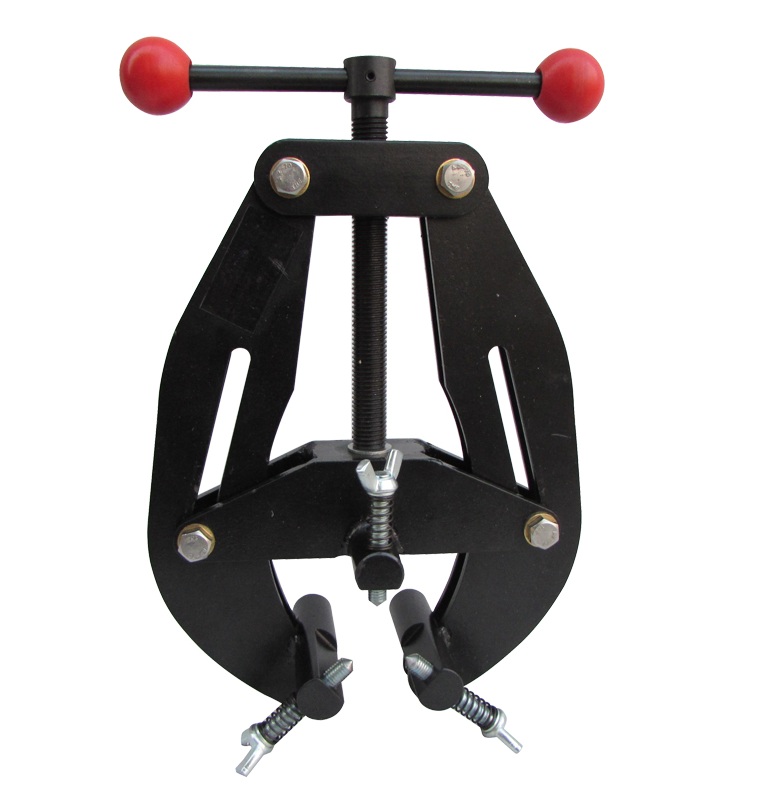

The portable Pipe Alignment Clamp is designed to ensure accurate and precision alignment of pipe, flange, 90 degree fitting, and tee. The pipe alignment clamp is made of double-walled steel plate and guaranteed to last. It is simple and portable, allowing quick set up and ideal for field and workshop use. The Pipe alignment Clamp covers from 1” (25mm) OD up to 12” (300mm) OD.
Specification
| Model | Clamping Range .O.D | Weight (kg) |
| CB1 | 1”-2 ½” (25-65mm) | 3.6LB / 1.6KG |
| CB2 | 2”-6” (50-150mm) | 8.8LB / 4.0KG |
| CB3 | 5”-12” (127-300mm) | 14.7LB/ 6.7KG |
Application
| Pipe to Pipe | Pipe to flange | Pipe to 90 degree fitting | Pipe to Tee |
|
|
 |
 |
 |
There are currently no optional accessories for this item.
