Key Features

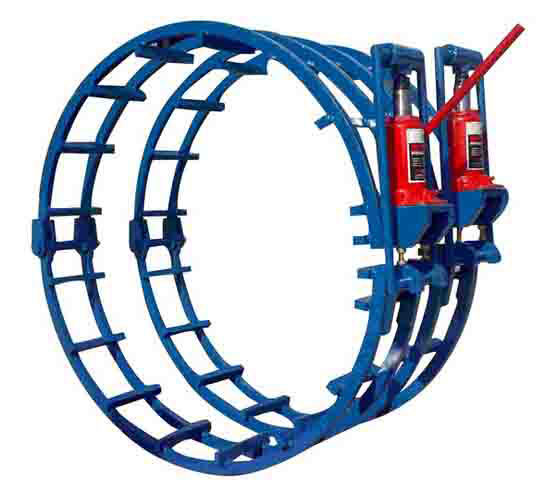

This hydraulic type Pipe Clamp are the cost effective method to quickly align a single size of pipes. The clamping range are from 6" to 80' . Please clarify your clamping range, we will customerized the machine to fit your requirements.
Specification
| Electric drive |
Working range O.D Φ |
Dimension | Weight | Number of Clamps | Support Pressure | |
| inch | mm | mm | kg | pcs | T | |
| HOC 6 | 6” | 168 | Φ120x1800 | 52 | 4 | 5 |
| HOC 8 | 8” | 219 | Φ175 x1300 | 60 | 4 | 20 |
| HOC 10 | 10” | 273 | Φ170x1350 | 75 | 6x2 | 20 |
| HOC 12 | 12” | 324 | Φ250x1500 | 155 | 8x2 | 55 |
| HOC 14 | 14” | 355 | Φ280x1600 | 155 | 10x2 | 68 |
| HOC 16-18 | 16”-18” | 406-457 | Φ360x1350 | 225 | 10x2 | 85 |
| HOC 20-22 | 20”-22” | 508-559 | Φ470x2200 | 430 | 10x2 | 150 |
| HOC 24-26 | 24”-26” | 610-660 | Φ550x2700 | 550 | 12x2 | 183 |
| HOC 28-30 | 28”-30” | 711-762 | Φ650x2900 | 700 | 12x2 | 270 |
| HOC 32-34 | 32”-34” | 813-864 | Φ750x2900 | 780 | 16x2 | 270 |
| HOC 36-38 | 36”-38” | 914-965 | Φ850x2900 | 950 | 18x2 | 450 |
| HOC 40-44 | 40”-44” | 1016-1117 | Φ950x3200 | 1400 | 18x2 | 650 |
| HOC 46-50 | 46”-50” | 1168-1270 | Φ1000x3700 | 1800 | 24x2 | 750 |
| HOC 52-56 | 52”-56” | 1320-1422 | Φ1150x4120 | 2000 | 24x2 | 750 |
| HOC 58-62 | 58”-62” | 1473-1574 | Φ1250x4200 | 2300 | 30x2 | 750 |
| HOC 64-68 | 64”-68” | 1625-1727 | Φ1450x4300 | 2600 | 30 | 750 |
| HOC 70-74 | 70”-74” | 1778-1879 | Φ1640x4300 | 2800 | 36 | 750 |
| HOC 76-80 | 76”-80” | 1930-2032 | Φ1780x4500 | 3000 | 36 | 750 |
There are currently no optional accessories for this item.
