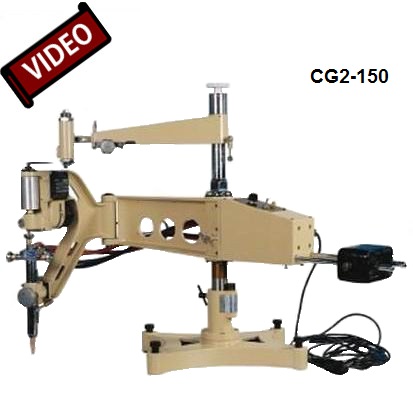

CG2-150 Demonstraction CG2-150B Demonstraction
Key Features
● Volume production cutting of identical shape components can be cut by profiling the pattern.
● Adopt SCR technology control speed, moving steadily.
● The main body is made of high-strength diecasting aluminum.
● Oxygen and Acetylene hoses are made of high quality rubber.
● The machine is a low cost system for volume.
Specification
| Model | CG2-150 | CG2-150A | CG2-150C | CG2-150B | |
| Input power | 220V±10% 50HZ | ||||
| Modes of cutting | Gas cutting | ||||
| Cutting thickness | 5-100mm | ||||
| Cutting speed(mm/min) | 50-750 | ||||
| Length of straight-line cutting(mm) | 1200mm | 1650 | 2015 | 1200 | |
| Diameter of circular cutting | φ20-φ600mm | φ20-φ1800mm | φ30-φ2200mm | φ20-φ600mm | |
| Max size of cutting square | 500x500mm | 1270x1270mm | 1550x1550mm | 500x500mm | |
| Dimension(mm) | 1190x335x800 | 1190x335x870 | 1590x335x800 | 1190x335x800 | |
| Weight of machine | 57kgs | 59kgs | 75kgs | 61kgs | |
| Weight of track | / | / | / | 5kgs | |
Remarks:
● The CG2-150B is equipped with 1.8meters track.

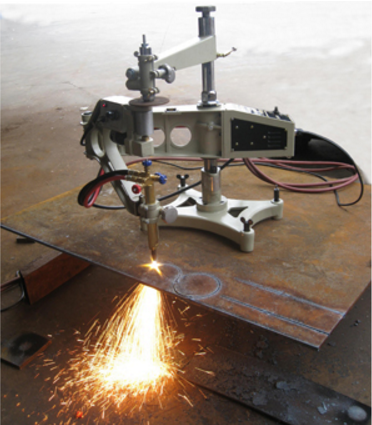

Working on-site
