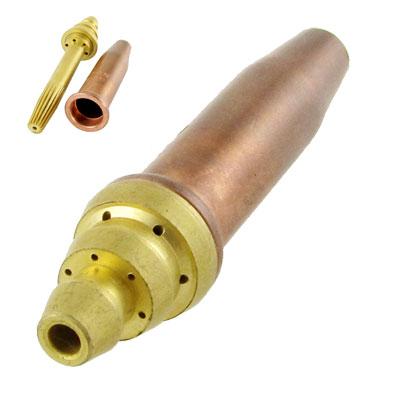

G03 series Propane/Natural Gas Cutting Tip for gas cutting equipments
Specification
|
Size |
Orifice |
Cutting Thickness mm |
Cutting Speed mm/min |
Air Pressure MPA | Consumption m3/h | ||
| Oxygen | Acetylene | Oxygen | Acetylene | ||||
| 00 | 0.7 | 5-10 | 450-600 | 0.2-0.3 | ＞0.03 | 1.1 | 320 |
| 0 | 0.9 | 10-20 | 380-480 | 0.2-0.3 | ＞0.03 | 1.5 | 320 |
| 1 | 1.2 | 20-30 | 320-400 | 0.3-0.4 | ＞0.03 | 2.8 | 450 |
| 2 | 1.5 | 30-50 | 280-350 | 0.3-0.4 | ＞0.04 | 4 | 450 |
| 3 | 1.8 | 50-70 | 240-300 | 0.4-0.6 | ＞0.04 | 6 | 600 |
| 4 | 2.1 | 70-90 | 200-280 | 0.4-0.6 | ＞0.04 | 9 | 600 |
| 5 | 2.4 | 90-120 | 180-220 | 0.5-0.7 | ＞0.05 | 15 | 750 |
| 6 | 2.7 | 120-160 | 160-200 | 0.5-0.7 | ＞0.05 | 22 | 980 |
| 7 | 3.1 | 160-200 | 140-180 | 0.5-0.7 | ＞0.05 | 28 | 980 |
| 8 | 3.2 | 200-270 | 90-130 | 0.6-0.8 | ＞0.05 | 45 | 1200 |
| 9 | 3.6 | 270-350 | 60-90 | 0.6-0.8 | ＞0.05 | 55 | 1500 |
| 10 | 4.0 | 350-400 | 50-70 | 0.7-1.2 | ＞0.05 | 58 | 1600 |
