Key Features

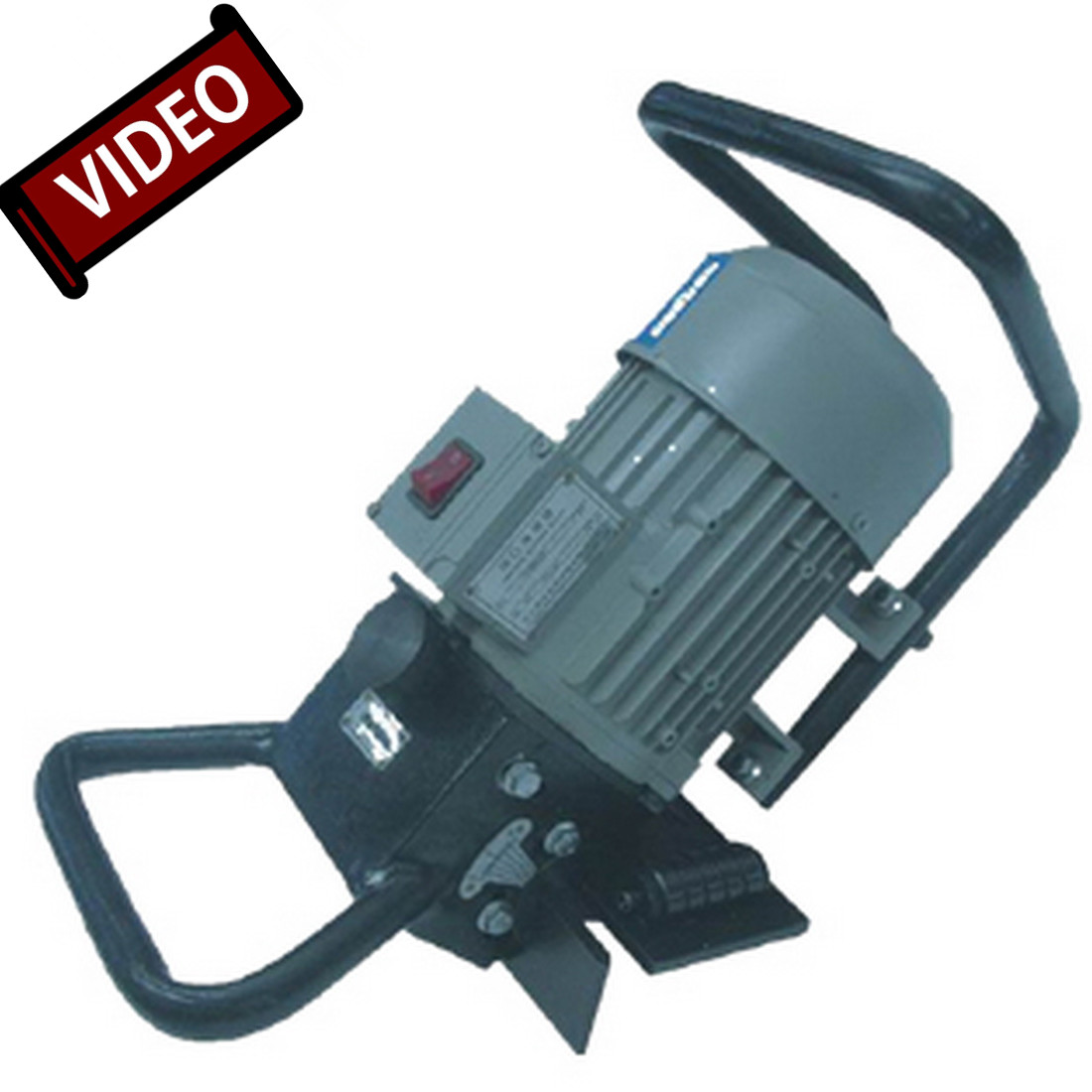

● The machine is a handy and flexible unit for the preparation of welding, beveling, deburring of materials.
● Can bevel K, V, X, and Y types of welding joint.
● The working efficiency can be increased 30-50 times than the common grinding machine.
● Low weight, easy and safe operation.
● Smooth and flat beveling face.
Specification
● Motor: 3-380V, 50HZ
● Power: 1.1KW
● Rotation speed: 2870RPM
● Max. bevel width (W): 20mm
● Bevel angle (α): 30°-60°
● Plate Thickness (T): Unlimited
● Net Weight: 18KGS
● Gross Weight: 37KGS
● Dimension: 450x300x260mm
● Standard Accessories: 2pc Butterfly Shape Cutter Head+12pcs beveling tools

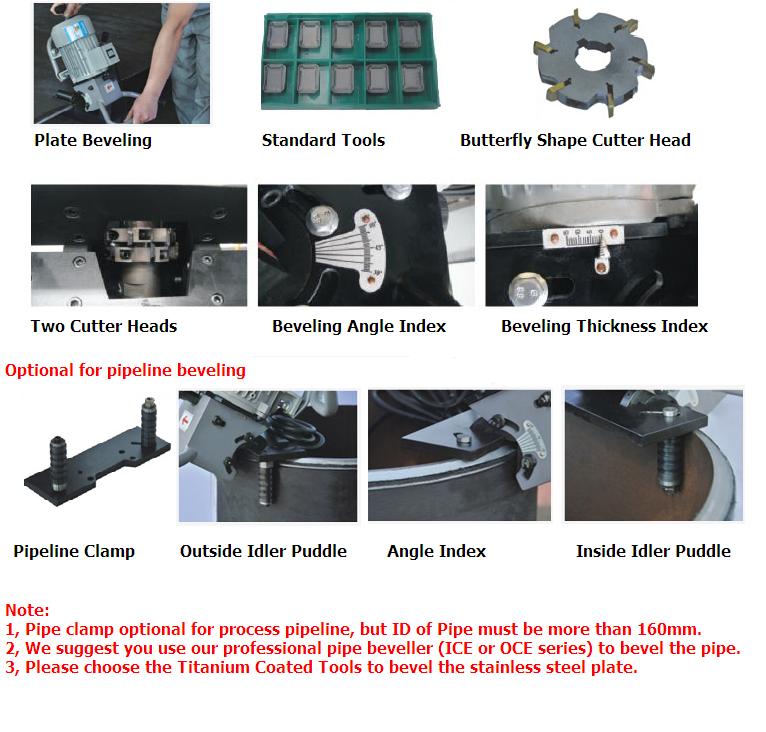

Detail Pictures
