Key Features
● Advanced Mosfet Inverter technology.
● CUT/TIG/MMA multiple-process welding machine.
● Electronic conversion function, easy operation.
● Auto-compensation for voltage fluctuation.
● Waterproof,anti-static,anti-corrosive and reliable insulation
Specification

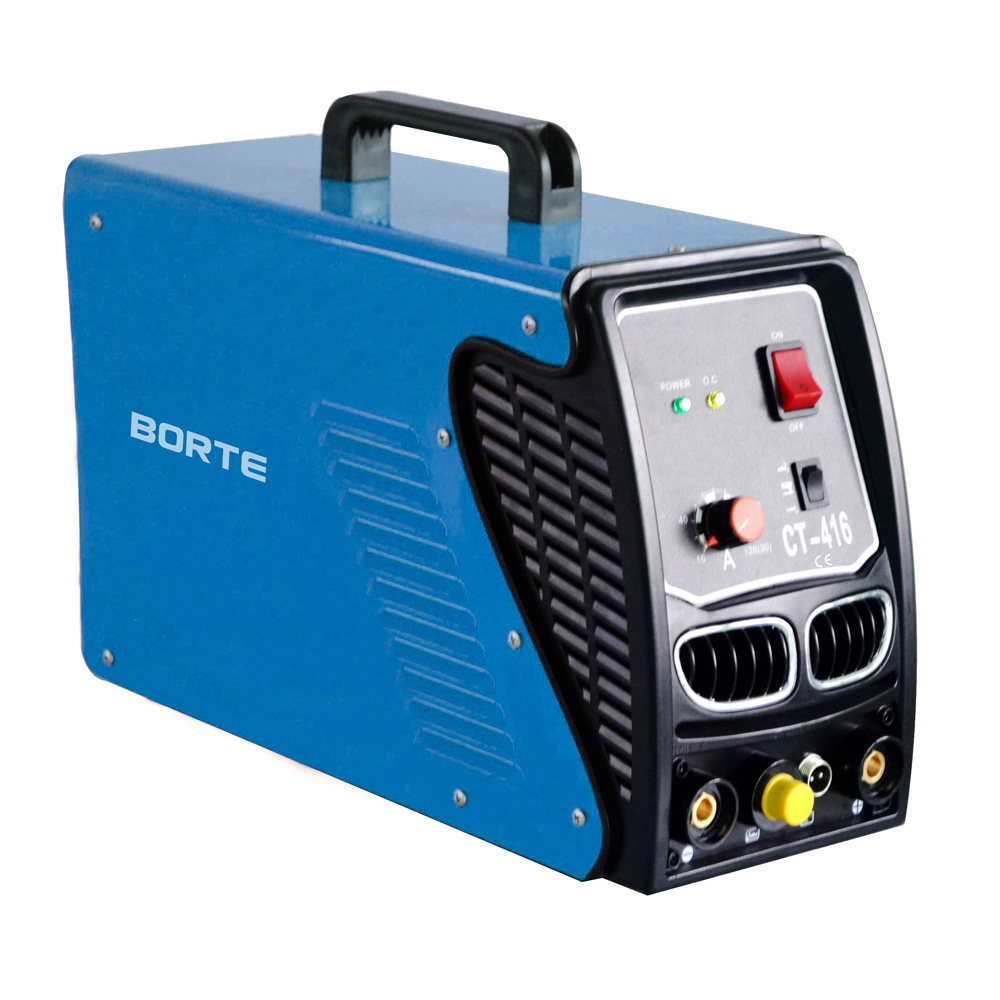

| Model | CT-416 | ||
| Function | TIG | MMA | CUT |
| Rated Input Voltage | 220V±15% | ||
| Rated Input Power | 4.8 | ||
| Rated Input Current(A) | 13.7 | 21.7 | 25.7 |
| Output Current Range | 10A-160A | 10A-150A | 20A-40A |
| Rated Output Voltage(V) | 16 | 27 | 96 |
| Duty Cycle | 60% | ||
| No-load Loss(W) | 40 | ||
| Arc-starting | HF/Touch | ||
| Dimension(mm) | 425×205×355 | ||
| Weight | 13.4kg | ||
| Inner Diameter of burner（mm） | 1.2 | ||
| Air Pressure | 0.4Mpa | ||
| Gas Flow | 2-5L/min | 80L/min | |
| Max welding Rod Dia.(mm) | 3.2 | ||
| Max Cutting Thickness(mm) | 12 | ||
