Specification
| Model | SR-17 / 17F |
| Type of cooling | air cooled |
| Torch Termination |
Cable and Gas Whole(M16*1.5&2Pins) (Other type can be customerized) |
| Cable |
10SQMM(4M or 8M) The length can be customerized |
| Angle | 75° |
| Rating | 150A DC or 120A AC |
| Tungsten Electrodes | Φ0.5, Φ1.0, Φ1.6, Φ2.0, Φ2.4 |
Termination Selection Guide list
| Termination Type | Fit for |
| M16*1.5+2pin | CT-416 |

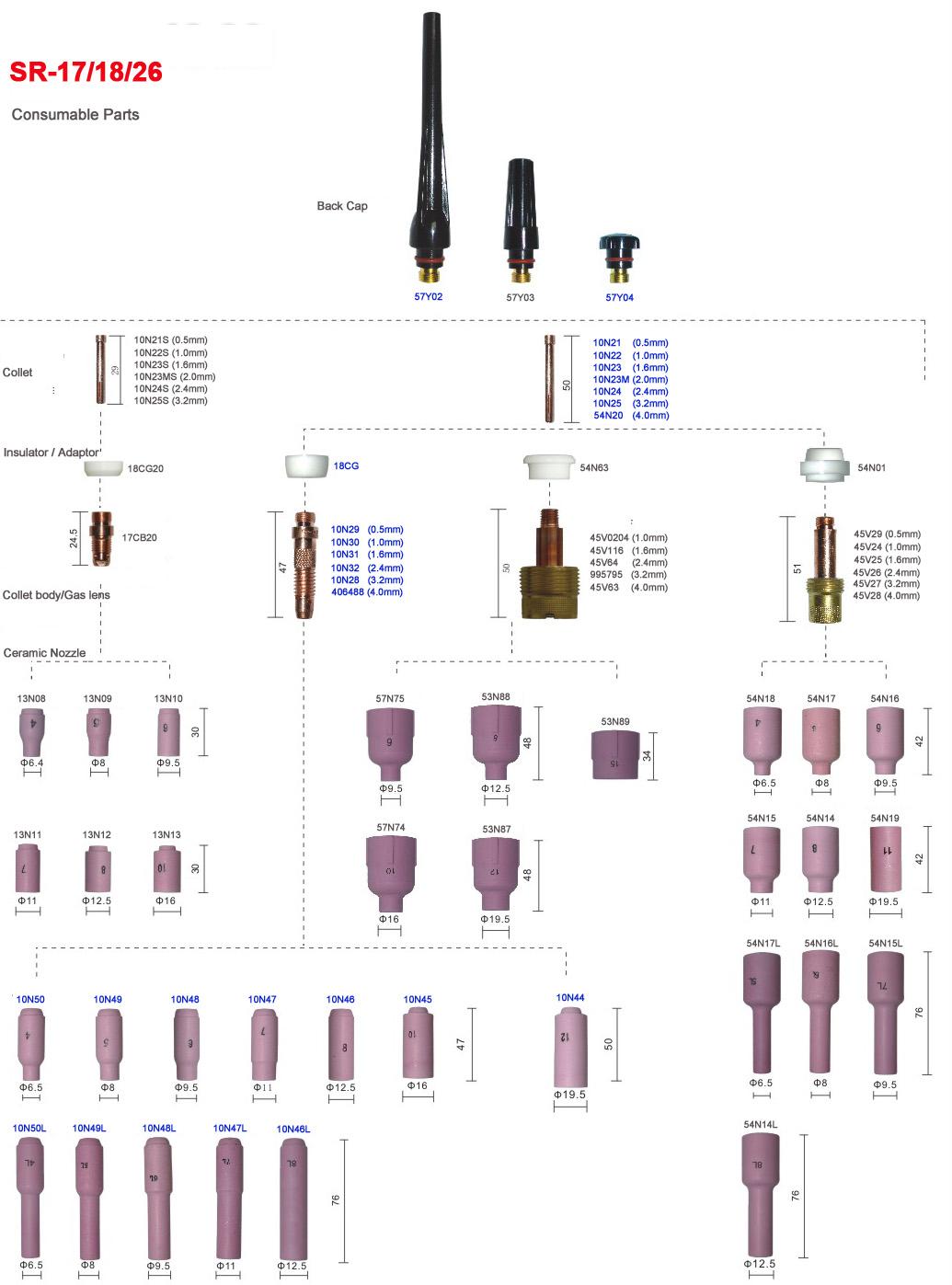

Drawing of the Consumables(SR 17 18 26)
Terminal Connectors

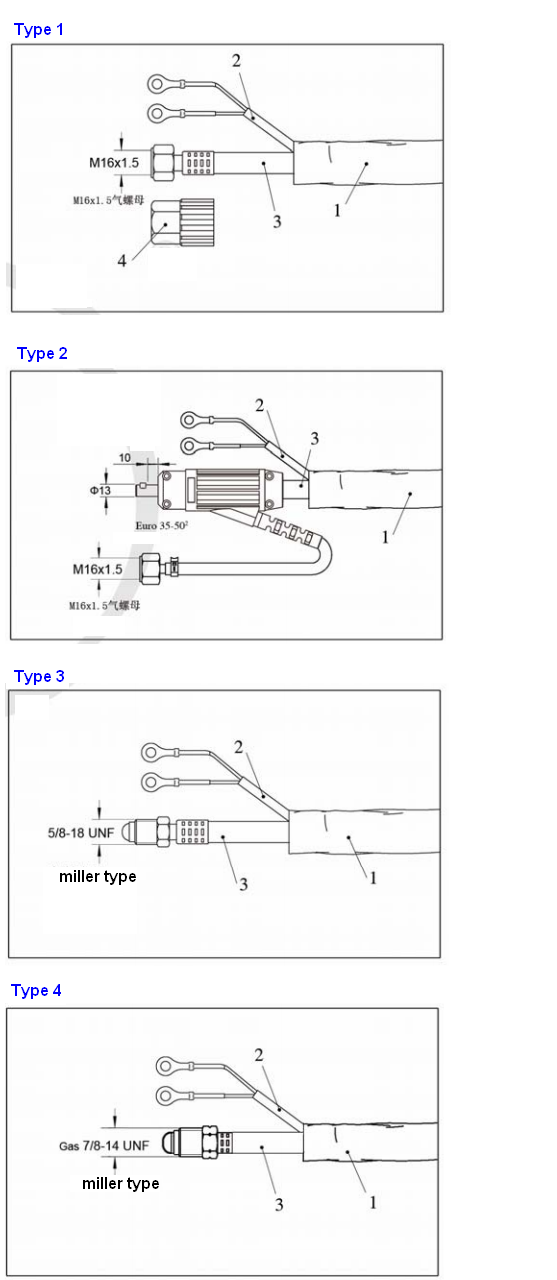

Gas & Electrical Whole( from Type 1 to Type 4)

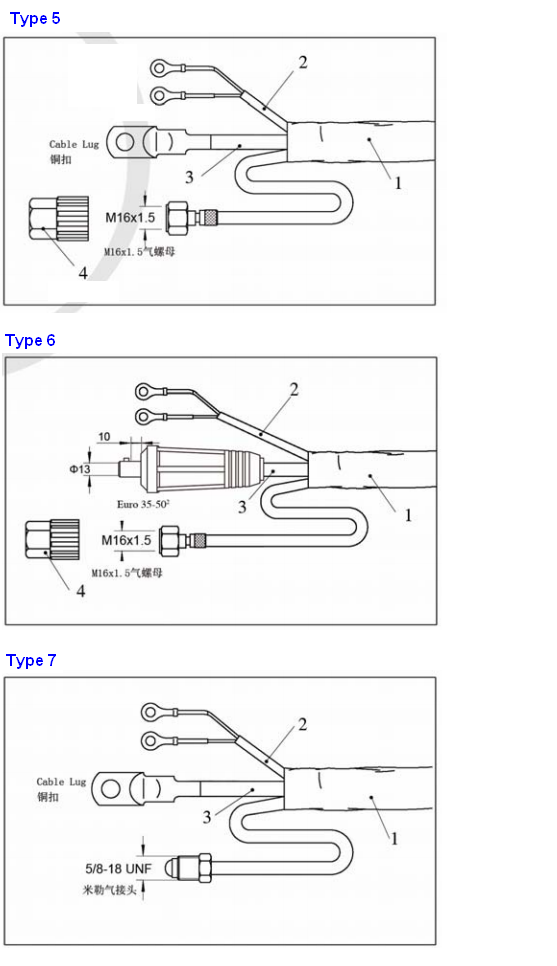

Gas & Electrical Seperate( from Type 5 to Type 7 )
