Key Features

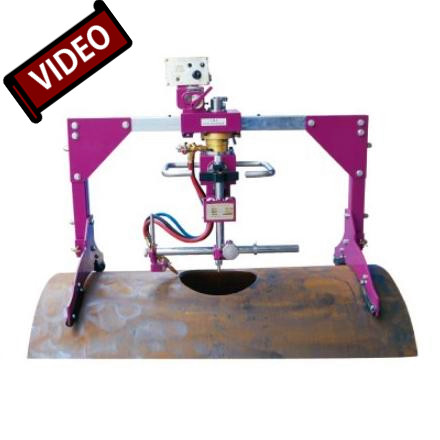

● The cutter is used for high pressure container as well as heat-exchanger to be T shape jointed and also for plan hole operation and running stable.
● The height of the cutting torch is easy to set, the self-lock system for torch up/down is designed by triangle principle so as to insure the machine tracks the curve precisely.
● Use the infinitude rotating gas distributor make the hose no intertwist.
● Special designing for decreasing body weidht and carrying it conveniently.
● Torch fixing with clutch, quick locating can be make by manual.
Specification
| Model | HK-600D | HK-1000D |
| Input Voltage | 220V/50HZ | |
| Dia.of circle cutting(mm) | φ80-φ600 | φ80-φ1000 |
| Cutting Thickness(mm) | 6-50 | |
| Cutting Curve Max.Height(mm) | 96 | |
| Cutting Speed(R/min) | 0.14-1.2 | |
| Motor | 68W | |
| Rate of circular cutting diameter：Pipe Diameter | ≥1：:2 | |
| Dimension(mm) | 1060x560x820 | |
| G.W/N.W | 102kg/95kg | 117kg/ 100kg |
There are currently no optional accessories for this item.
