Key Features
● It is suitable for welding category of 6xxx aluminium alloys that heat treatment can be applied.
● Since it is not sensitive to heat crack it could be used for welding wrought aluminum alloy or cast aluminum alloy that Si is not more than 7%. Also brazing welding could be applied.
● But it is not suitable for welding aluminium magnesium alloy (category of 5xxx aluminium magnesium alloy) and it is not suitable for anodizing of electrical application.
● It is widely used for welding aluminium alloy structures of ships, locomotives & carriages, motor vehicles, containers, sports apparatus, furniture as well as industries of chemical, foodstuff and machelloning, etc.
Specification
Chemical Compossition of Deposited Metal(%)，AWS ER4043(GB SAl 4043 [AlSi5])
| Si | Fe | Cu | Mn | Zn | Al | Ti | Mg | Other | Be | |
| Typical | 4.5-6.0 | ≤0.8 | ≤0.30 | ≤0.05 | ≤0.10 | Balance | ≤0..2 | ≤0.05 | ≤0.05 | ≤0.0008 |
Mechanical Properties of Deposited Metal，AWSER4043(GB SAl 4043 [AlSi5])
| Melting temperature | Corrosion resistance | Electrical conductivity | Density | |
| Typical | 574℃～632℃ | B(Gen) A(Scc) | 42%IACS(-O) | 2.67g／㎝³ |

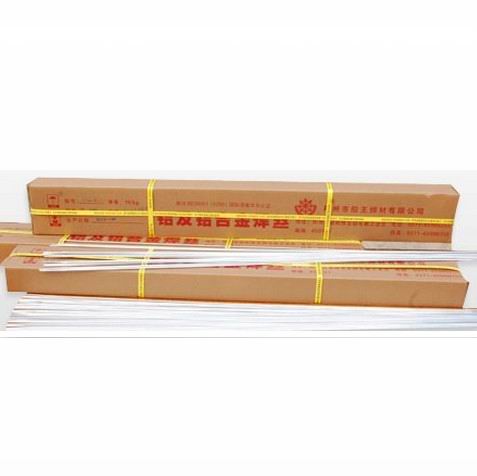

Packing, AWS ER4043(GB SAl 4043 [AlSi5])
| Packing | 1meter/pc, 10kgs/carton | |||||
Note: 1unit=1kg
