Key Features
● Its weld metal provides good color match after anodizing of electrical applications.
● It has good resistance for corrosion.
● It is widely used for welding aluminium structures of industries of electricity, chemical, foodstuff, metallurgy, locomotives & carriages and so on.
Specification
Chemical Compossition of Deposited Metal(%)，AWS ER1100(GB SAl 1100 [Al99.0Cu])
| Si+Fe | Cu | Mn | Zn | Al | Be | |
| Typical | ≤0.95 | 0.05-0.20 | ≤0.05 | ≤0.10 | ≥99.00 | ≤0.0003 |
Mechanical Properties of Deposited Metal，AWS ER1100(GB SAl 1100 [Al99.0Cu])
| Yield pointбb(MPa) | Elongation δ5(%) | Tensile Strength (Mpa) | Shielding Gas | |
| Typical | 35 | 24 | 95 | 100%Ar |

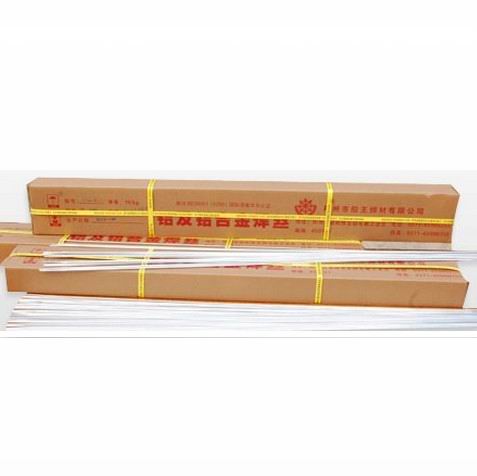

Packing, AWS ER1100(GB SAl 1100 [Al99.0Cu])
| Packing | 1meter/pc, 10kgs/carton | |||||
Note: 1unit=1kg
There are currently no optional accessories for this item.
