Beside you select the cutting mode, cutting width, cutting length, please also let us know the material of the plate and the max cutting thickness of the plate you will do.
How to choose a suitable cnc cutting machine? Please click the Selection Guide. Customerized cutting range is available as per your specific requirement.
BORTE will supply you the installation and operation video of the machines after you purchase the machine.
Applications
It can be widely used in the industries as aerospace, agricultural machinery, construction machinery, railway manufacturing, elevator manufacturing, special construction vehicle, tool manufacturing, oil machinery manufacturing, food machinery, decorated advertizing, foreign processing service and all kinds industries related to mechanical manufacturing.
Cutting materials
It can be used to cut Carbon steel by flame cutting and carbon steel, stainless steel, copper alloy, aluminum alloy, titanium alloy, electrolytic plate, aluminized Steel Sheet by plasma cutting.
Key features

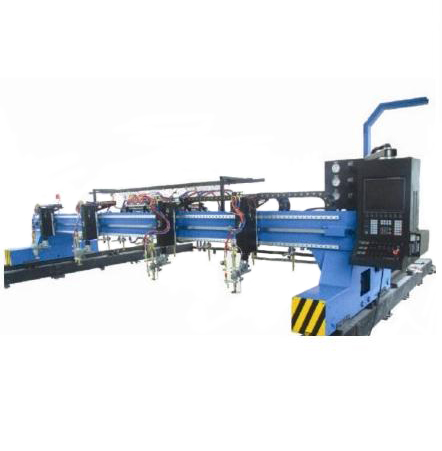

●The Gantry CNC machines(GNC series) adopts gantry structure and can cut any shapes using flame and plasma cutting processes.
●The GNC series machines are one kind of NC cutting equipment with high effectiveness, high precision, low labor intensity. It can be widely used in cutting and cutting material working procedure of carbon steel, stainless steel, aluminum and other metal materials.
●The back of beam could fix up to 9pcs strip torches.
●Adopted Panasonic high-precision AC servo motor, high-precision running more smoothly reducer.
●With automatic ignition, automatic increase function.
●Remote control network interface, support for remote fault diagnosis, remote upgrade.
●English, Russia, French, Portuguese, Spainish, Chinese Language swithable for the CNC system operation.
Specification
| Model | GNC-3000 / |
| Input power | 380V±15% 50/60HZ |
| Modes of cutting | Flame/Plasma |
| Beam Width(mm) | 4000mm |
| Effective cutting width | 3000mm / 4000mm/ 5000mm/ 6000mm/Customerized |
| Track length | 2m×6 |
| Effective cutting length | 10m(can be customerized) |
| Cutting speed(Flame) | 80～1000mm/min |
| Cutting Thickness (Flame) | 6～150mm(select the cutting nozzle size) |
| Cutting speed(Plasma) | 100～3000mm/min |
|
Cutting Thickness (Plasma) For stainless steel plate |
According to the plasma power source |
| Gas type for flame cutting(Flame mode) | Oxygen + acetylene or Oxygen+propane |
| Plasma Air | Compressed Air |
| Cutting precision | Ra12.5 |
| Cutting software | FastCAM standard version |
Note: The prices don't include the plasma power source and plasma torch. which will be quoted after get your specific requirements.
