Description
● The machine is an upgraded substitute for manual-cutting/semi-automatic cutting/profiling cutting machines .

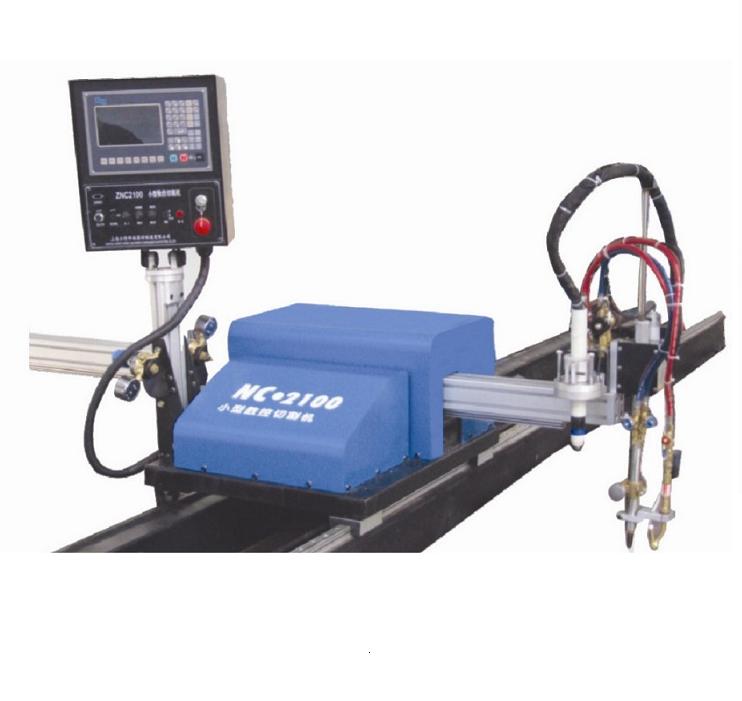

● The small NC cutting machines(SNC series) can cut any shapes using flame and plasma cutting processes. These machines are economical, compact, lightweight and high precision, making them very portable and easy for an operator to carry the machine from job to job, for both indoor and outdoor cutting.
● The machine are extremely versatile and suitable for factories of all sizes, with application in automotive, construction, shipbuilding, fabrication and other industries.
● The machine's CNC system has an intuitive LCD display with graphical menu driven operation. NC programs in EIA format can be loaded for cutting via USB port or RS-232 download. FastCAM programming software is offered with the machines to allow the user to create effective cutting programs that maximize productivity and plate utilization. The CAD file(DXF/DWG format) can be converted into program file. All the functionality you can expect from a large scale CNC cutting machine, in a smaller portable size, with a very affordable price.
Applications
It can be widely used in the industries as aerospace, agricultural machinery, construction machinery, railway manufacturing, elevator manufacturing, special construction vehicle, tool manufacturing, oil machinery manufacturing, food machinery, decorated advertizing, foreign processing service and all kinds industries related to mechanical manufacturing.
Cutting materials
It can be used to cut Carbon steel by flame cutting and carbon steel, stainless steel, copper alloy, aluminum alloy, titanium alloy, electrolytic plate, aluminized Steel Sheet by plasma cutting.
Key features

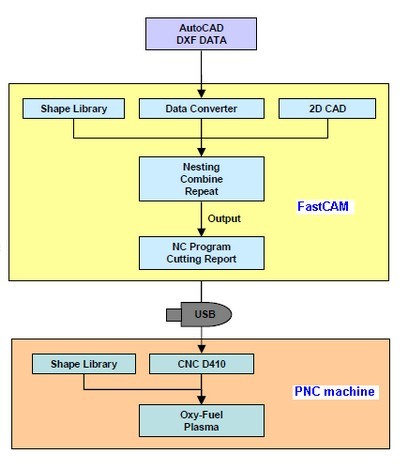

FastCAM nesting Software
● The FastCAM® Software is compatible with other CAD/CAM systems, however the system does not require additional software; You can Draw, Nest and cut from the one programming system. Best of all, FastCAM® allows people at a shop floor level to start profile cutting with the minimum of training. The FastCAM® System produces immediate NC code for a wide variety of cutting machines and there is also a non-NC edition available.
● Draw the part or import a DXF file.
● AUTOCAD DXF data reading/writing through FastCAM nesting software.
● Easy NC program output to PNC by USB memory
● Manual tool pathing.
● Edit, Verify and Output NC code.
● Interactive Nesting.
CNC system ( Model:F2200B Shanghai Jiaoda University brand)
● 64M Memory for users' Programs
● Built-in Library of 45 types commonly used figures
● Break-point&Power-cut restoration
● Returning to reference point
● Kerf compensation
● Revolving
● Mirror image
●English, Russia, French, Portuguese, Spainish, Chinese Language swithable for the CNC system operation
Mechanical structure features:
● Heavily steel rail for the plasma cnc cutting machine, good stability, not deformation, beautiful and easy.
● A new combined chassis structure design, cross arm and master station and machinery and CNC parts can be decomposed and combination. Chassis external equipped with USB interface, control cable interface, plasma arc striking interface, inside the case to avoid high temperature and with fan cooling, ensure the stable operation of the machine.
● Beams using special aluminum alloy industrial profiles, light weight, no deformation. Beam can tear open outfit, convenient the transfer and the packing and shipping, and can ensure the beam vertical degree no change
● More human master station, directly face cutting site, the maximum widened work perspective
● Walking part adopts precision gapless gear, rack driving, guarantee the accuracy, eliminate the gap.
● Motor using stepping motor drive technology( Panasonic Brand), and using high subdivision drive, high accuracy, smooth operation
● Neugart brand gear.
● Electrical Torch height control for the flame cutting. Arc Voltage Controller and Torch anti-collision device are equipped for the plasma cutting machine.
Specification
| Model | PNC-2100 or PNC-2300 |
| Input power voltage |
Standard:220V±15% 50HZ 110V 60HZ is optional |
| Rated Power Supply | 600W |
| Modes of cutting | Flame/Plasma |
| Beam Width(mm) | 2800mm |
| Effective cutting width (X axis) | 2100mm or 2300mm |
| Track Length(mm) | 700mm longer than the effective cutting length(Y axis) |
| Cutting hickness(Flame cutting) | 6-150mm(select the suitable cutting nozzle) |
| Cutting Thickness(Plasma cutting) | 0.1-25mm(according to the plasma power source) |
| Cutting Speed(Flame) | 0-4000mm/min |
| Cutting speed(Plasma) | according to the plasma power source |
| Gas for flame cutting | Oxygen+Acetylene or Oxygen+Propane |
| Plasma air | Compressed Air |
| Fuel gas pressure | ≤0.1Mpa |
| Oxygen pressure | ≤0.7Mpa |
| Cutting Precision | 0.2mm |
| Control accuracy | ±0.001 MM |
Pictures

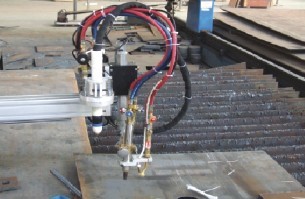

Flame Torch Plasma Torch

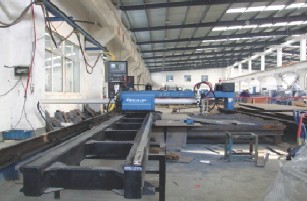

Heavily Rail
Note: The prices don't include the plasma power source and plasma torch. which will be quoted after get your specific requirements.
