Categorie
Browse History
Description

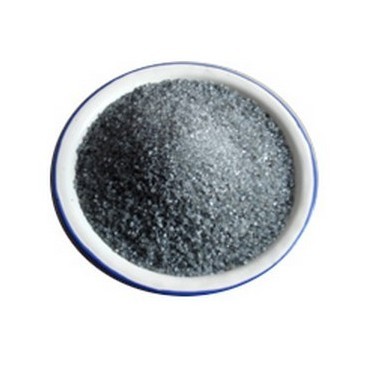

HJ350 is a kind of smelting-type mid-Mn mid-Si and mid-F flux. It appears brown to light-yellow glassy particlse with the mesh of 8-40(25-0.45mm)and 14-40(1.5-0.45mm). During the course of welding,either direct-current or alternating-current main can be adopted,and welding wires are connected to the positive electrode when the former is adopted. Its welding performance is excellent.
Usage&Cautions
● It can be used in the welding of low-alloy steel(such as16Mn, 15MnV,15MnVN,etc) structures in conjunction with welding wires(such as H08MnA,H10Mn2,H08Mn2Mo,etc).It is widely used in the welding of ships,boilers,high-pressure vessels,etc.The flux with fine particle size can be used in the fine-wire submerge-arc welding of thin plate structures.
● Impurities on the welding surface must be removed before welding,such as oil soil,moisture,iron rust,etc.
● The flux must be baked for 2 hours under the temperature of 300-400℃ before it is used.
Specification
(Chemical Composition)(%)
| SiO2 | CaF2 | Al2O3+MnO | CaO | FeO | S | P |
| 30～35 | 14～20 | 27～37 | 10～18 | ≤1.0 | ≤0.06 | ≤0.07 |
Mechanical Performance
| Item | Yield pointбb(MPa) | Tensile Strength бb(MPa) | Elongation δ5(%) | -20℃ Impact Value(J) |
| Standard | ≥330 | ≥415～550 | ≥22% | ≥27 |
Packing details
| Pallet | 22tons/pallet |
| Bag | 25kg/bag |
Note: The price base on 1unit=1ton
