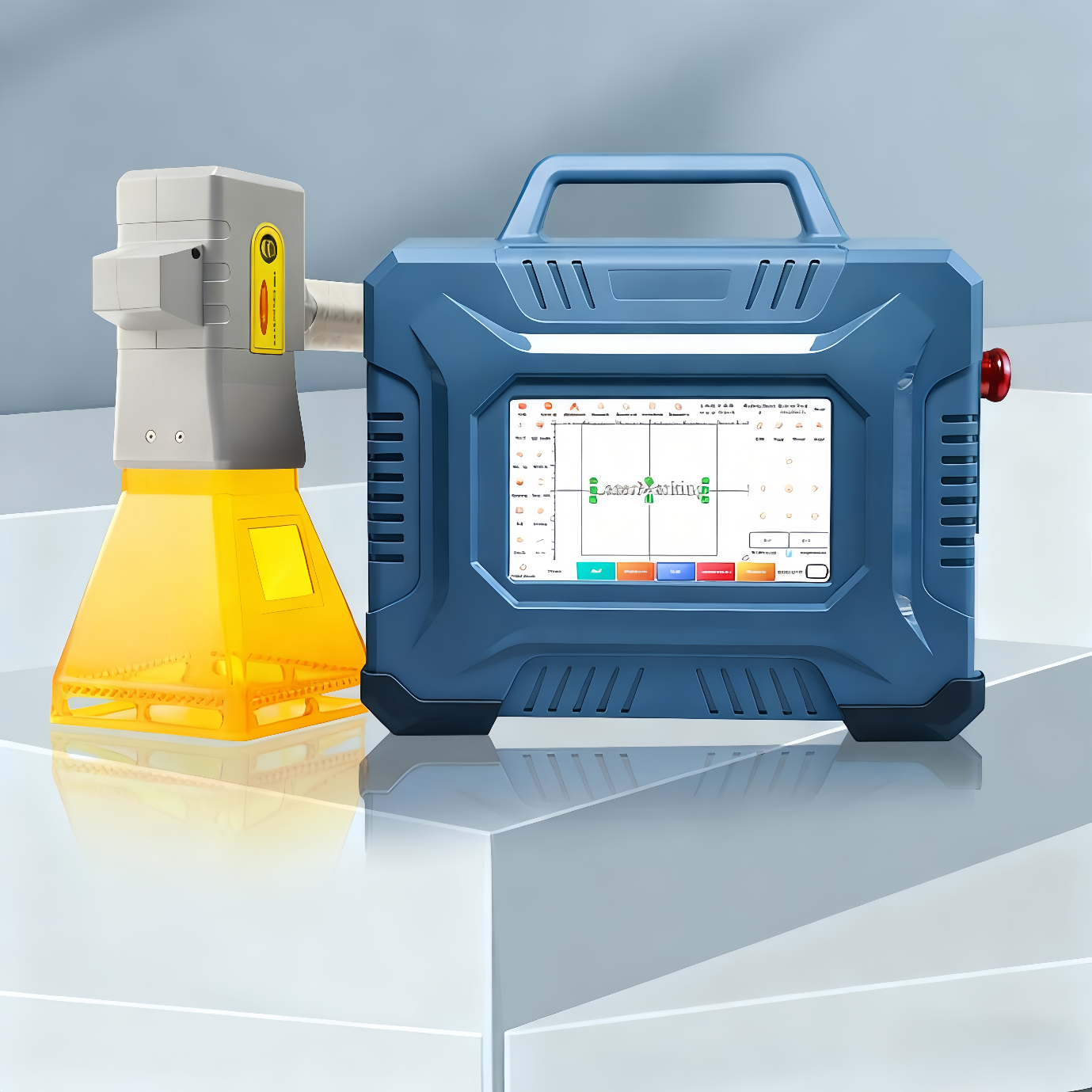

Portable Handheld Fiber Laser Marking Machine
1. The equipment is small in size and light in weight, with a total weight of 8KG, suitable for handheld operation.

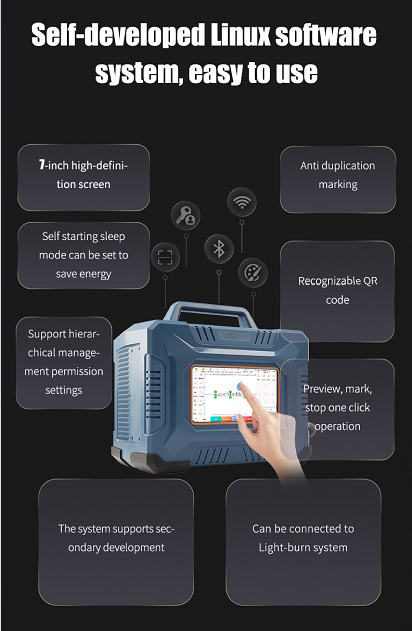

2. Equipped with a self - developed embedded dedicated marking system, using LINUX as the operating platform, it has a high degree of integration, and the software supports secondary development.
3. Equipped with a power adapter, it supports marking while charging. The built - in lithium battery allows outdoor use, with a battery life of about 6 - 8 hours.

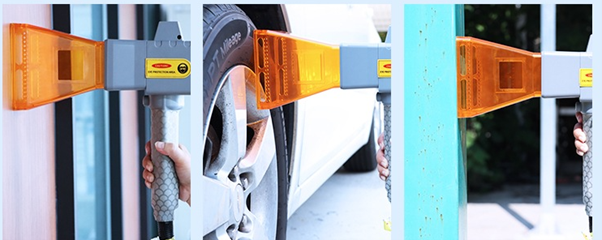

4. Adopting red light automatic positioning, no manual focus adjustment is required. It is suitable for various application scenarios and solves the marking needs of objects that are not easy to move and special working scenarios.
5. It has an automatic start - stop function, which extends the battery life of the lithium battery and prolongs the service life of the laser and galvanometer motor.
6. Multiple languages are available (Simplified Chinese, Traditional Chinese, English, Russian, Italian, Portuguese, Spanish, Arabic, Korean, German, etc. Other languages can also be added).
7. It is compatible with files output by a variety of software and can mark QR codes, graphics, texts, etc. It supports file formats such as PLT, DXF, SVG, BMP, JPG, PNG.
|

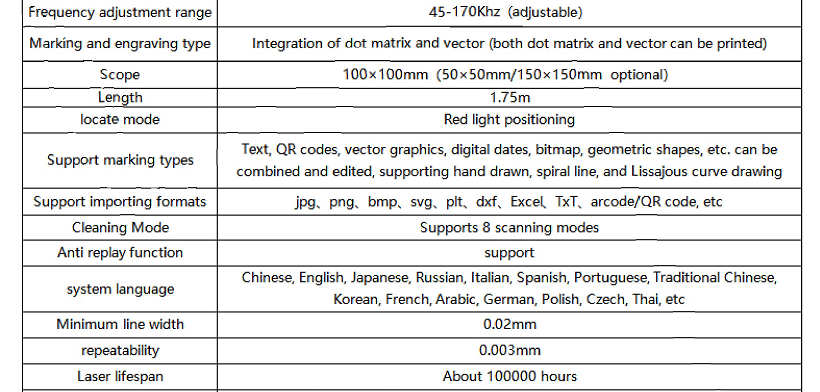

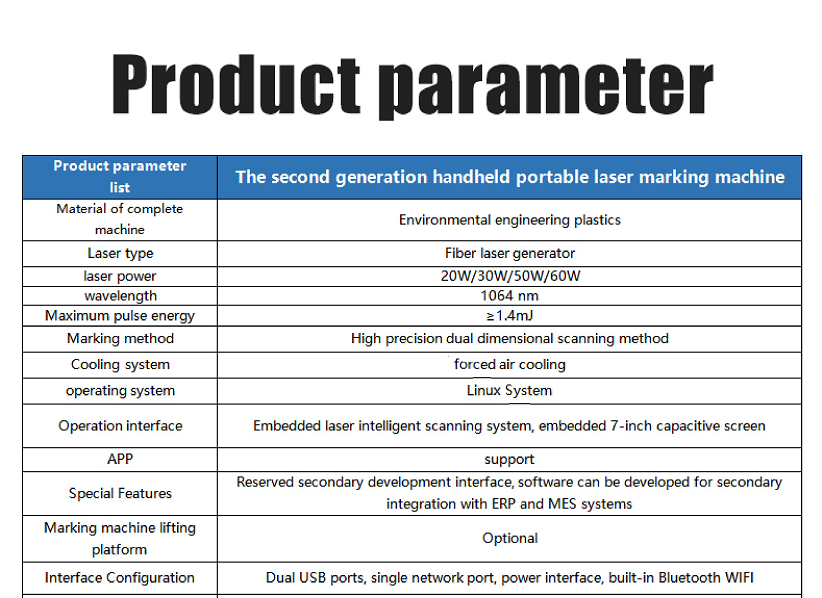

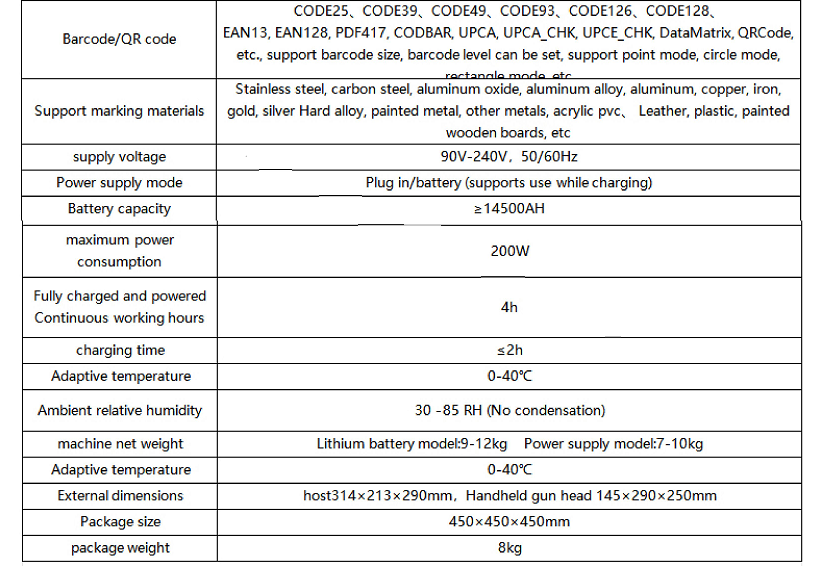

Optical Parameters |
DATA |
|
Average Laser Power |
20W / 30W / 50W / 60W |
|
Power Instability |
Less than 2% |
|
Laser Working Mode |
Pulsed |
|
Pulse Width |
90 ± 10ns |
|
Maximum Single Pulse Energy |
0.7 - 1.1mJ |
|
Beam Quality (M²) |
< 1.5 |
|
Power Adjustment Range (%) |
30 - 100 (Gradual Adjustment) |
|
Repetition Frequency (kHz) |
27 - 60 (Gradual Adjustment) |
|
Fiber Length |
1.9m |
|
Cooling Method |
Air Cooling |
|
|

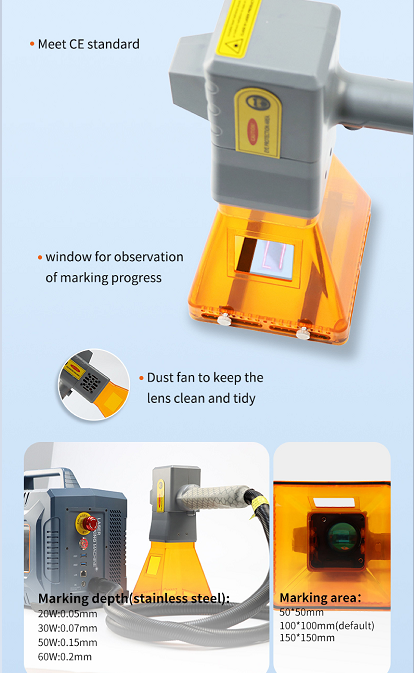

Handheld Head Parameters |
|
Scanning Range (Length × Width) |
100 × 100mm |
|
Scanning Frequency |
1 - 600kHz |
|
Field Lens Focal Length (mm) |
100mm / 160mm |
|
Focal Depth |
Approximately 2mm |
|
|

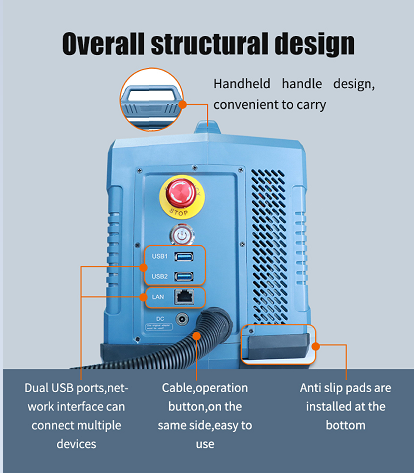

Mechanical Parameters |
|
Overall Machine Size (Length × Width × Height) |
Approximately 280mm × 210mm × 330mm |
|
Overall Machine Weight |
Approximately 7.8Kg (Including Battery) |
|
Marking Handle Weight |
< 0.9Kg |
|
Lithium Battery Specification |
15AH |
|
Operation Mode |
Handheld |
|
|
Operating Environment |
|
Power Supply |
Lithium Battery Power Supply, Continuous Working Time for 4 - 8 Hours; Standard Single - phase 220V ± 10%, 50 / 60Hz AC Power Supply |
|
Overall Machine Power Consumption |
Less than 200W |
|
Operating Environment Temperature |
0℃ - 40℃ |
|
Operating Environment Humidity |
≤ 80% |
Equipment Accessory List of Portable Handheld Fiber Laser Marking Machine
1. Power Adapter
2. USB Flash Drive
3. Protective Goggles
4. Lens Dust Blower
5. Capacitive Pen
6. Focal Length Gasket
Operation Method of Focal Length Gasket:
1. Place the focal length gasket parallel to the installation position of the fixed - focus cover.
2. Confirm the screw positions and tighten them.

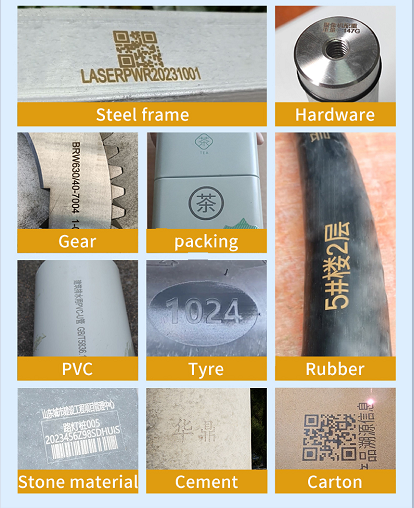

SAMPLES SHOW
