Description

Welding Positioners are mainly used to manipulate and position the Jobs , independent of operator's skill. Once the job is loaded it can be manipulated conveniently to complete all the welding operations in down hand position. This reduces handling time and frequent use of crane. Positioners can be conveniently used for complete circumferential welding, strip cladding, for down hand position welding, to set the job conveniently for easy accessibility to intricate assemblies etc. Along with welding manipulator, a positioner can carry out any welding tasks which are impossible otherwise.


Key Features

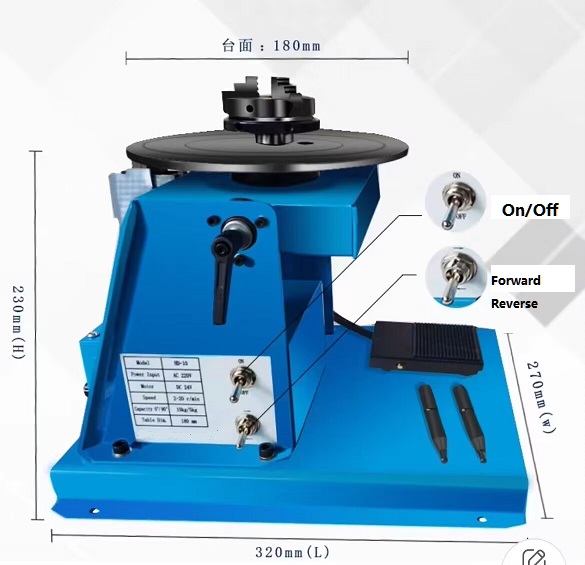

● The rotation structure of positioner is driven by the name brand DCmotor, while stepless speed regulation can be achieved;
● Theturning structure of worm and gear has the function of self-lock, and theworktable can be turned steplessly between 0-90° ;
● Tableof welding positoner has centre through hole, which is convenient for the pipeto be clamped and positioned, and protect the gas when it go through theinternal pipe, so it will improve the accuracy and quality of welding
● Specialdesign of anti-electromagnetic, which reduces the high frequency interferenceof TIG's welding, and can improve the welding quality effectively;
● time-controller can be furnished to control the working condition andworking time, which can achieve the linkage of the positioner and welder;
● Thewelding chuck and adjustable-welding gun support can be furnished to fix theposition of the welding torch;
● The trackand air-powered tip can be furnished to achieve the function of self-holding tothe workpieces;
● theupgrading can be achieved on the basis ofcurrent positioners, improve automatization of the welding process.

● CE certificated.



Specification

Remarks: The color, voltage, table rotate speed anddiameter , center hole diameter can be design according customers’ requirements.
