Torch demo
How to change the reflective lens
How to change the collimator lens
How to adjust the red light deviation
How to change to the double wire feeding welding for the laser gun.

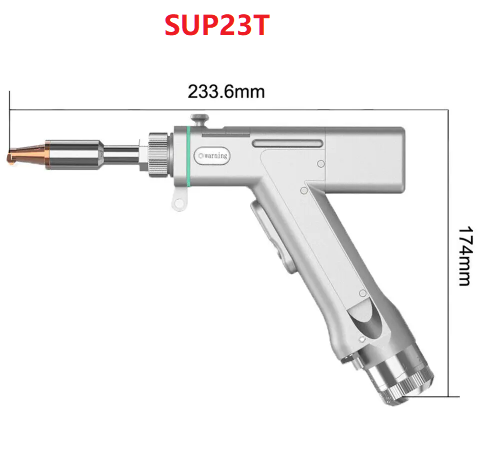

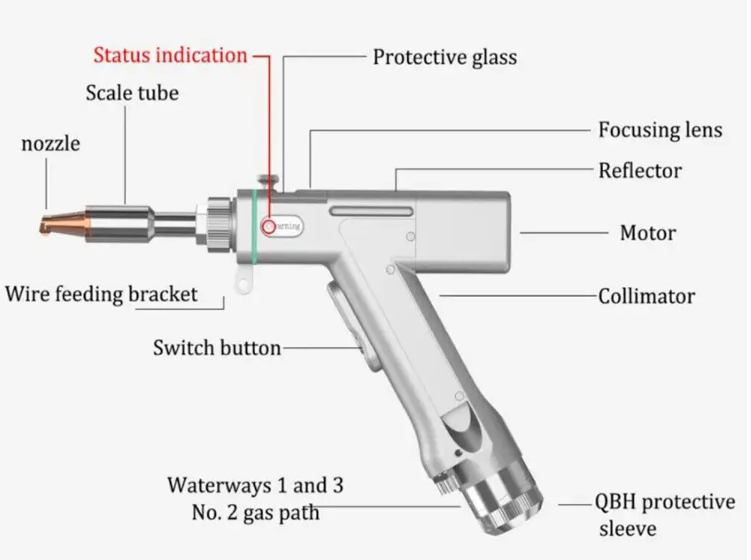

Drawing of SUP23T
The SUP23T have the function of status indicator / alarm indicator:
The alarm will be on when the protective len is overheating.
The alarm will be on when there is failure of water cooler & laser source.
Specification
| Model | SUP21T | SUP23T |
| Interface type | QBH | QBH |
| Power Range | 0-3000W | 0-3000W |
| Laser Wavelength | 1070nm | 1070nm |
| Focus vertical adjustment range | 10 mm | 10 mm |
| Light Spot adjustment range | 0-8.0 mm | 0-8.0 mm |
| Collimating length | D16-F60 mm | D16-F60 mm |
| Focal length | D20-F150 mm | D20-F150 mm |
| Protective lens | D18*2mm | D18*2mm |
| Cooling Way | Water | Water |
| Weight | 0.7kg | 0.7kg |
| Maximum air pressure | 15Bar | 15Bar |
