Description

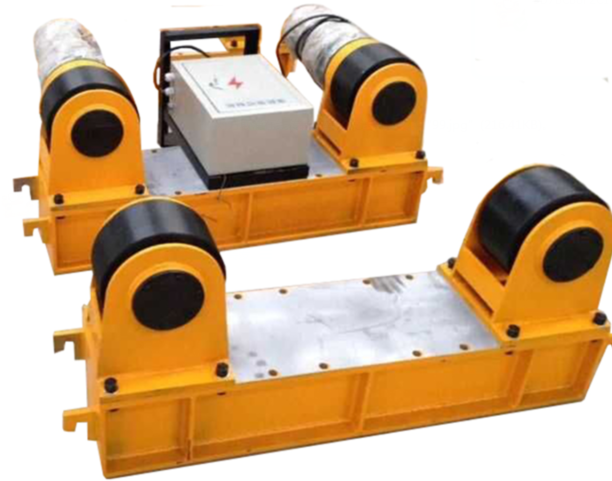

1. 5 tons Adjustable welding rotator has compact structure, it works in various environments, It can adapt cylinder work piece with weight below 5 t and diameter from 250 mm to 1800 mm , it adopts frequency control of motor speed, rotational speed within 60-1000 mm/min stepless adjustable, polyurethane roller design increasing the friction between the wheel and the workpiece, heat resistance, abrasion resistance, not skid.
Reserve the location of the nut hole’ adjusting.
2. The 10-ton adjustable welding roller frame has simple and compact structure design and can work in various environments; It can adapt to the use of cylindrical, cylindrical and other workpieces with a weight of less than 10T and a diameter of 300mm-3500mm. The speed of rotation is stepless adjustable within 60-1000mm/min. The polyurethane roller is designed to increase the friction between the roller and the workpieces. It is temperature resistant, wear-resistant and non-slip; Reserved gong hole adjustment position
|
5T/10TSelf Aligning welding rotator Data |
||
|
Model |
C-5T |
C- 10T
|
|
Power Input |
380V |
380V |
|
Max Capacity |
5Tons |
10Tons |
|
Rotary Speed |
60-1000mm/min |
60-1000mm/min |
|
Diameter Range |
Ø250-1800mm |
Ø300-3500mm |
|
Driven Motor |
1*0.37KW |
2x0.37KW |
|
Roller Type |
120mm(W)×Ø250mm |
120mm(W)×Ø250mm |
|
Outside dimension（drive roll） |
1260×725×660mm |
1760×725×660mm |
|
Outside dimension （slave roll） |
1260×280×660mm |
1760×280×660mm |
|
Regulation mode |
VFD |
VFD |
