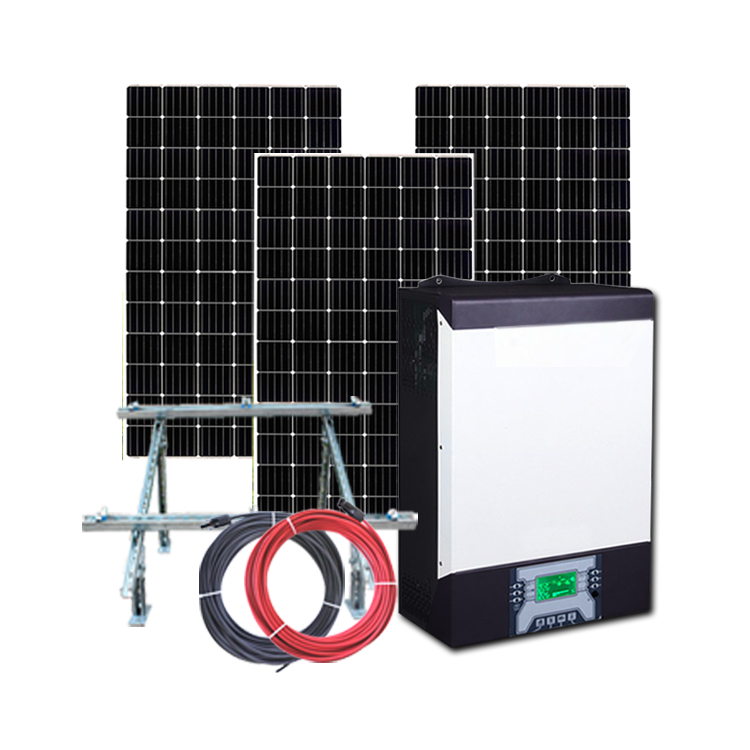

| System introduction: | |||||
| Load condition: less than 10000w electrical appliances are used, and the inductive load is less than 3300W. The host has complementary mains power and automatic switching in rainy days. | |||||
| Inverter：We tentatively set the output power of the inverter as 10000w, with complementary mains power and load carrying capacity: the group load is less than 10000w and the inductive load is less than 3300W. | |||||
| Module：The module is 400W * 24 = 9600w, the estimated effective light is 4h, and the daily power generation is about 9600 * 4 = 38400wh = 38kwh (monthly power generation ≈ 1140 KWH) | |||||
| Battery：Storage capacity 12V * 250ah = 3000wh * 16 = 48000wh Charging capacity is 48000wh, discharging capacity is 48000 * 0.92 * 0.9 = 39744wh, (conversion efficiency and discharge depth of battery) | |||||
| Name | Model and specification | Unit | Qty | Remark |
| Parallel and off grid integrated machine | 5KW/48V | SET | 2 | 220VAC output |
| Battery | 12V/250AH | PC | 16 | Gel Battery |
| Photovoltaic module single crystal | 400W | PC | 24 | Class a components |
| Photovoltaic line and accessories | SET | 1 | a distance of 15meter will be processed | |
| Battery cable | BVR25-17 | SET | 1 | All wires will be processed |
| Photovoltaic support | BXD-400-24 | SET | 1 | Ground hot plating |
| Battery cabinet | BX-250-8 | PC | 2 |
Photovoltaic priority and complementary power supply. When the photovoltaic and battery are out of power, it will automatically cut into the mains power supply load. Fully automatic without manual operation
