1. Product Overview
Product Introduction :

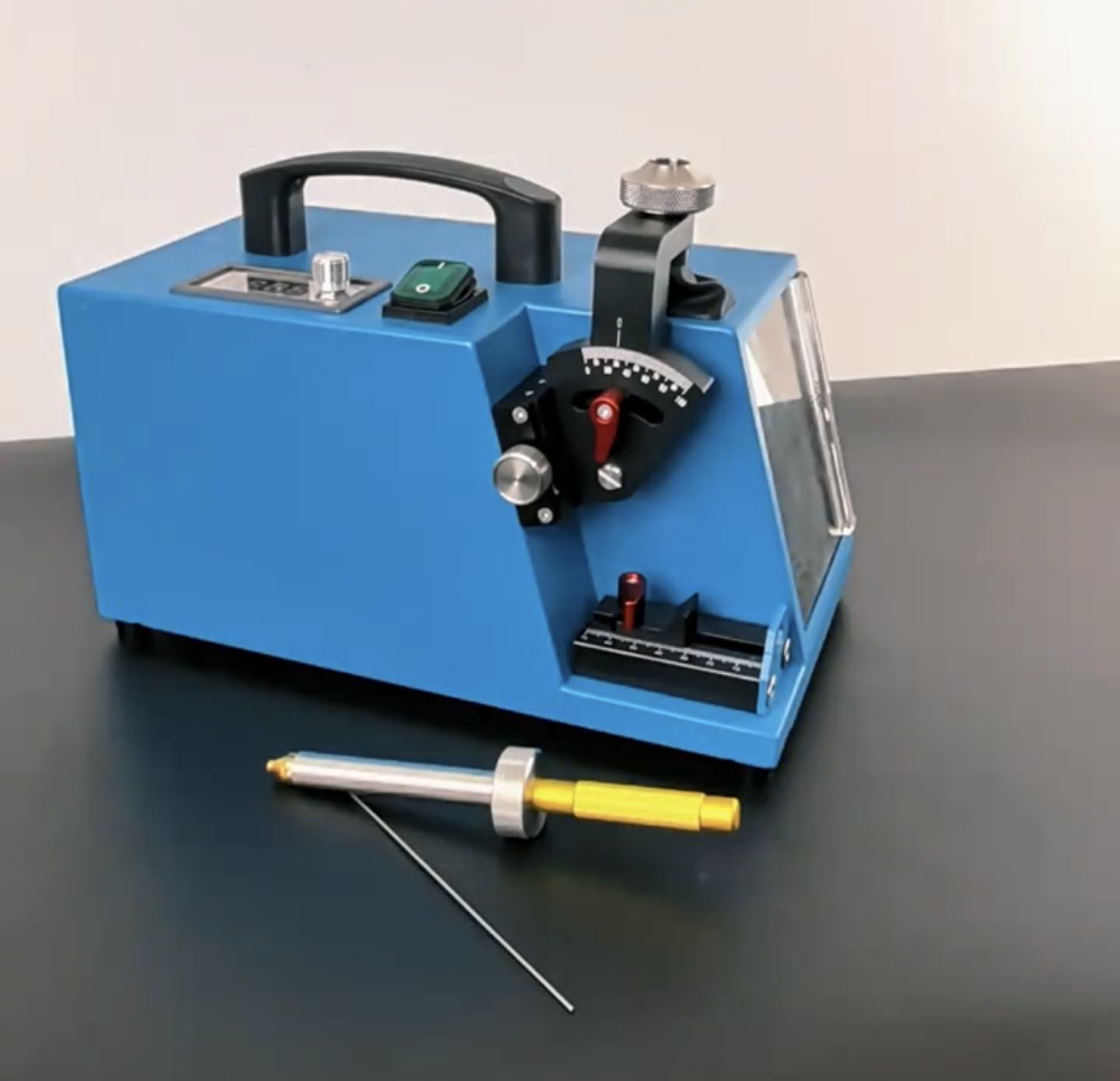

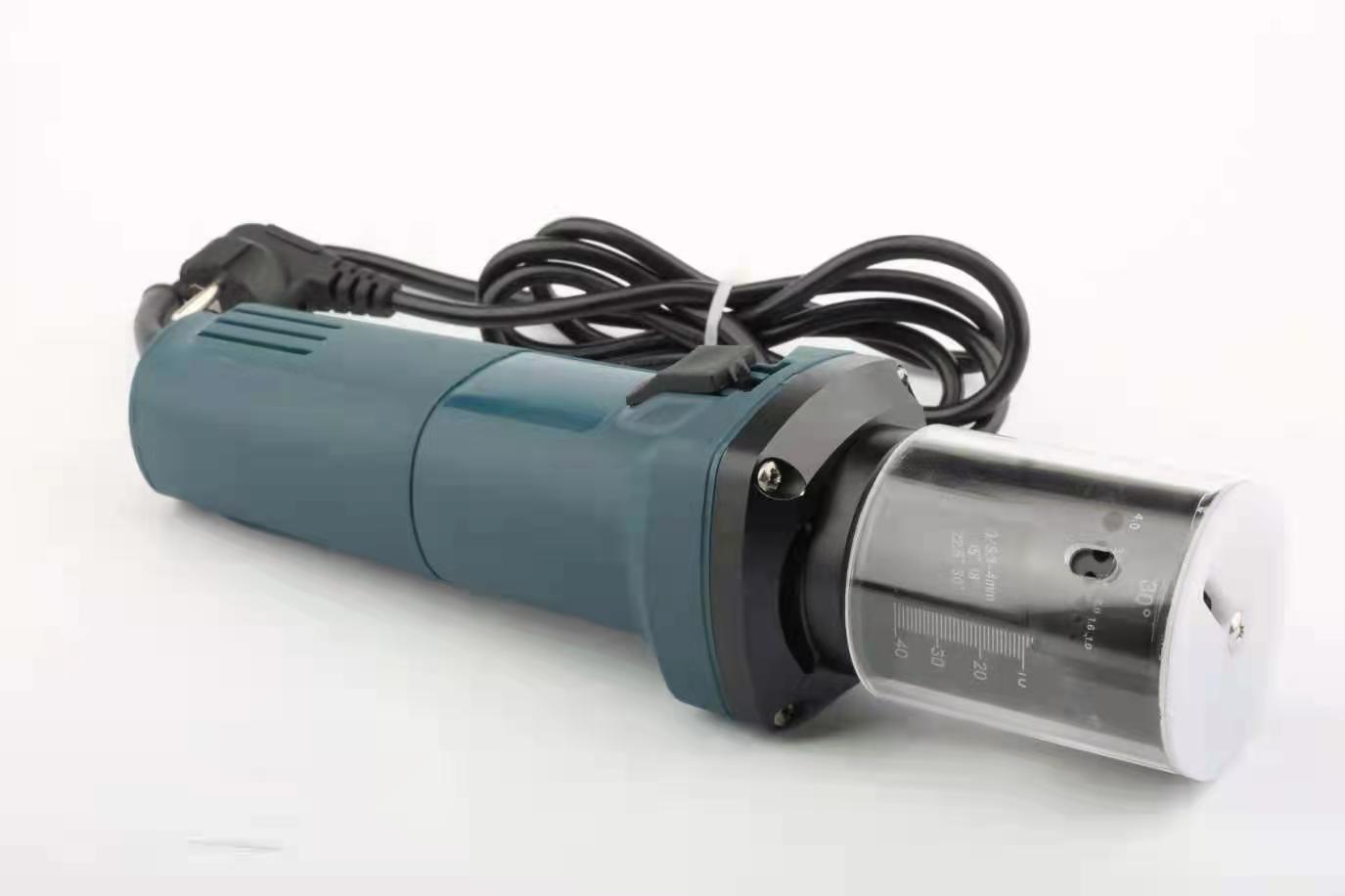

GMH-25 Tungsten Electrode angle grinder is a device designed for precision grinding of Tungsten Electrodes.
It is suitable for welding, laboratories, precision machining and other fields. It is an ideal solution for providing efficient and precision machining of tungsten electrodes for welding .
Product features :
This machine is portable, delicate and flexible; it supports Tungsten Electrode grinding at multiple angles (10°-60°) and multiple Tungsten Electrode diameters (1.6-5.0mm) , has the characteristics of high speed adjustment, easy operation, safety and reliability, and is designed in accordance with ergonomics .
It can work for a long time , with low cost, high output, energy saving and consumption reduction, low noise , no need for multiple manual positioning, and improve grinding efficiency .
It has patent certification. The equipment supports color, plug type and outer box packaging customization to meet diverse needs.
3. Technical parameters
|
category |
Parameter Description |
|
model |
GWH-25 |
|
color |
Standard Bay Blue/Customized colors available |
|
Rated voltage |
AC220-230V |
|
power |
150W |
|
Operating voltage |
DC24V |
|
Grinding angle range |
10°-60° (continuously adjustable) |
|
Speed range |
1000-8000r/min (Continuously variable speed) |
|
Supported Tungsten Electrode sizes |
1.6/2.0/2.4/3.2/4.0/5.0mm |
|
Device size |
Width 165 × length 300 × height 240mm |
|
Equipment weight |
5kg |
|
Shortest grindable |
25mm |
|
Working effciency |
3pcs/min |
4. Equipment structure and accessories

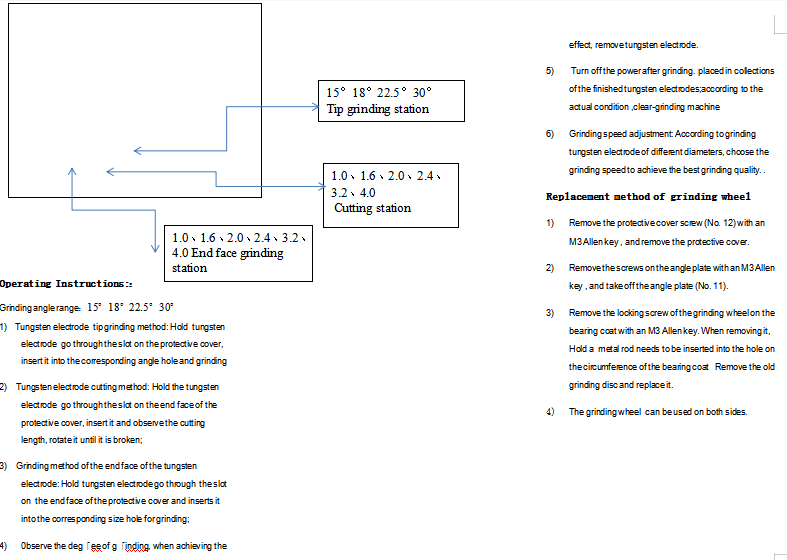

a. Host structure:
Tungsten Electrode fixture (suitable for needle diameters of 1.6-5.0mm)
Speed knob and power switch
Heat dissipation holes and safety shield
b. Standard accessories:
Tungsten Electrode fixture set (1 set)
Grinding wheel (installed)
Power cord (provided by plug type ordered)
Optional accessories: chuck 1.6-5.0, additional grinding wheel

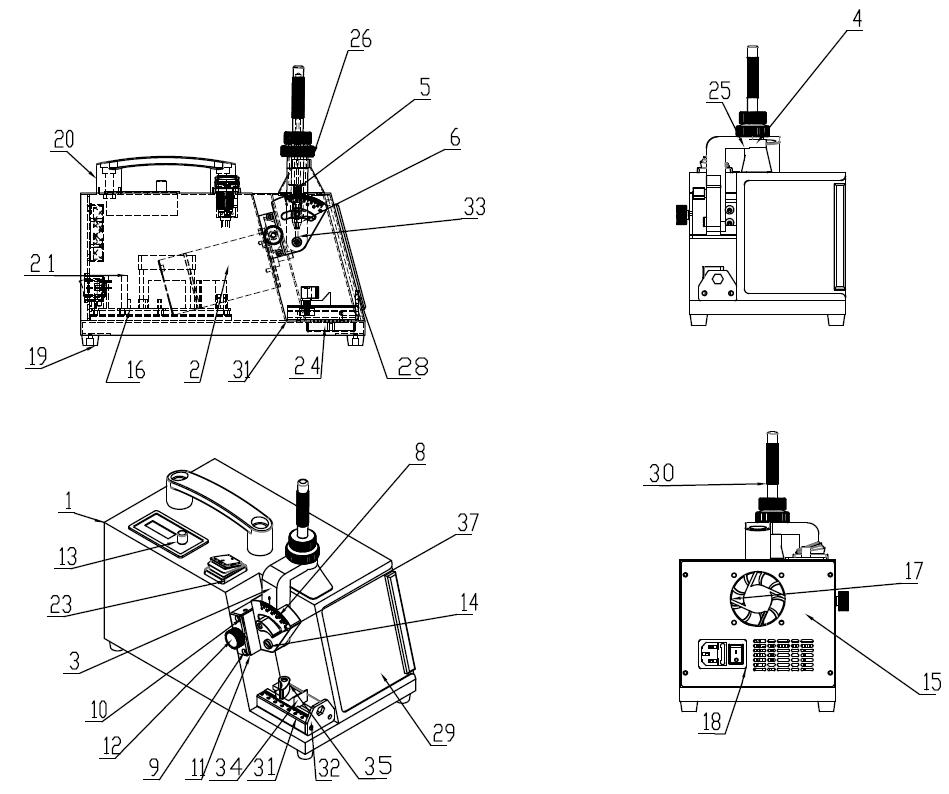

5. Exploded view and parts list
No.
Name
No.
Name
No.
Name
1
Housing
13
Digital
potentiometer
25
Lifting
screw
2
Motor
14
Equal
height screw
26
Adjustment nut
3
Swing
arm
15
Back
cover
28
Sealing
cotton
4
Dustproof ring
16
Power
board
29
Dustproof plate
5
Clamp
rod
17
Fan
30
Aluminum
sleeve
6
Clamp
rod
18
Three-in-one switch
31
Scale
slide rail
8
Angle
bracket
19
Rubber
foot
32
Locking
plate
9
Smoke do
20
Handle
33
Angle
plate
10
Inlay
strip
21
Terminal
board
34
Block
block
11
Baffle
23
Rocker
switch
35
Single
wing knob
12
Adjustment screw
24
Waste
box
37
Single
wing knob
