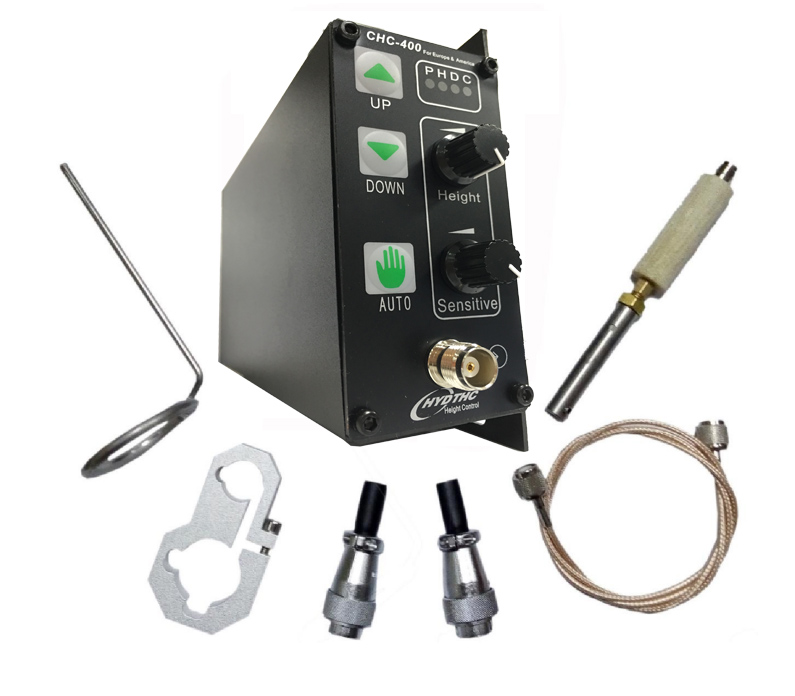

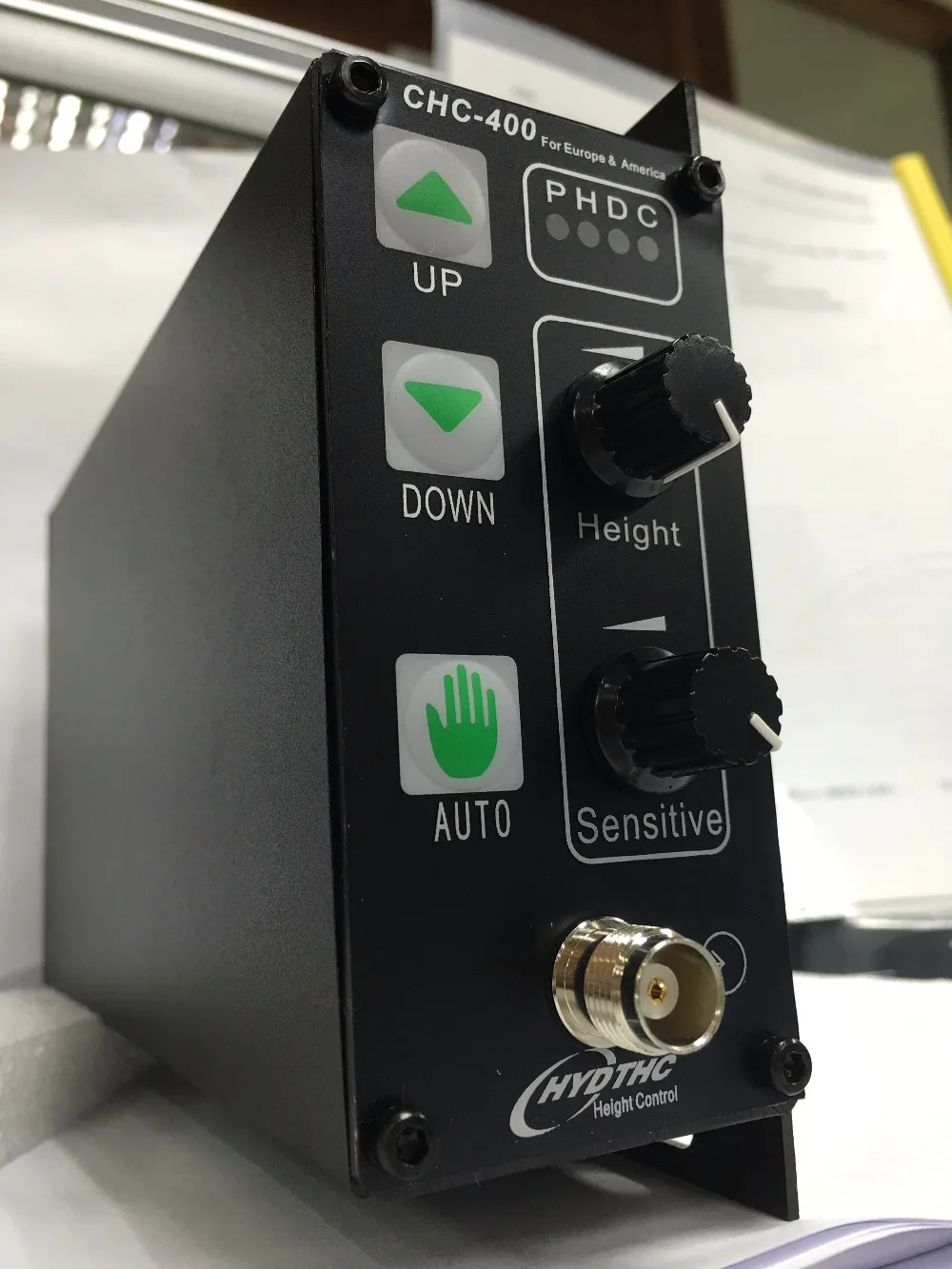

Torch height controller for flame cutting machine capacitive THC CHC-400 replace

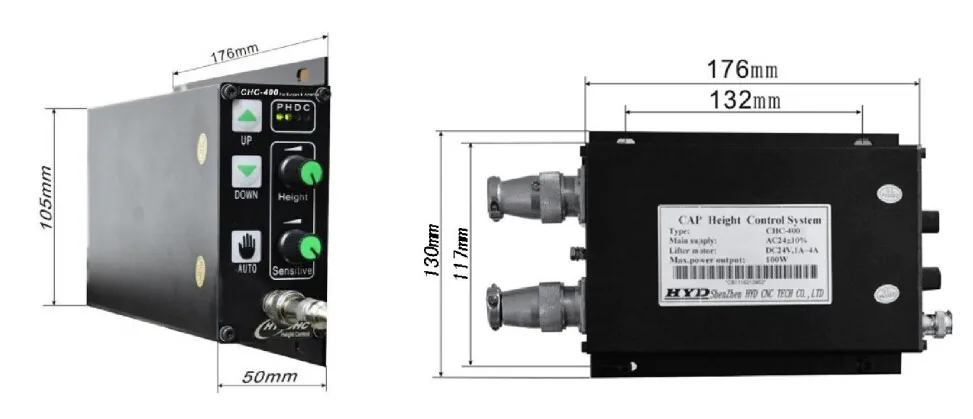

Specifications
1.newest torch height controller
2. Best accuracy 0.1mm
3. New anti-collision function design.
Comparing to CHC-200D, CHC-200F has new features as follow,
1, Increased more indicators to shows different states of THC.
2, Output of collision-alarm, which is optical isolation output from THC, can be sent to CNC’s Alarm input to freeze machine’s move. This signal is effective on both manual/auto mode. The max output is 200mA, capable to drive most relays.
3, Anti-collision function. On manual/auto mode, when metal or low-conductive item like hand touches sensor ring, THC would send out collision signal and lift torch up until no collision exist.
4, When HF cable is disconnected or weakly connected, it would be indicated on the disconnection indicator. So after installation of HF cable, just shake the HF cable, the connection will be showed by the indicator.
5, Sensitive and Accuracy is increased 100%.
6, CHC200E uses digital logic control circuit for logic control, greatly improved anti-interference performance.
