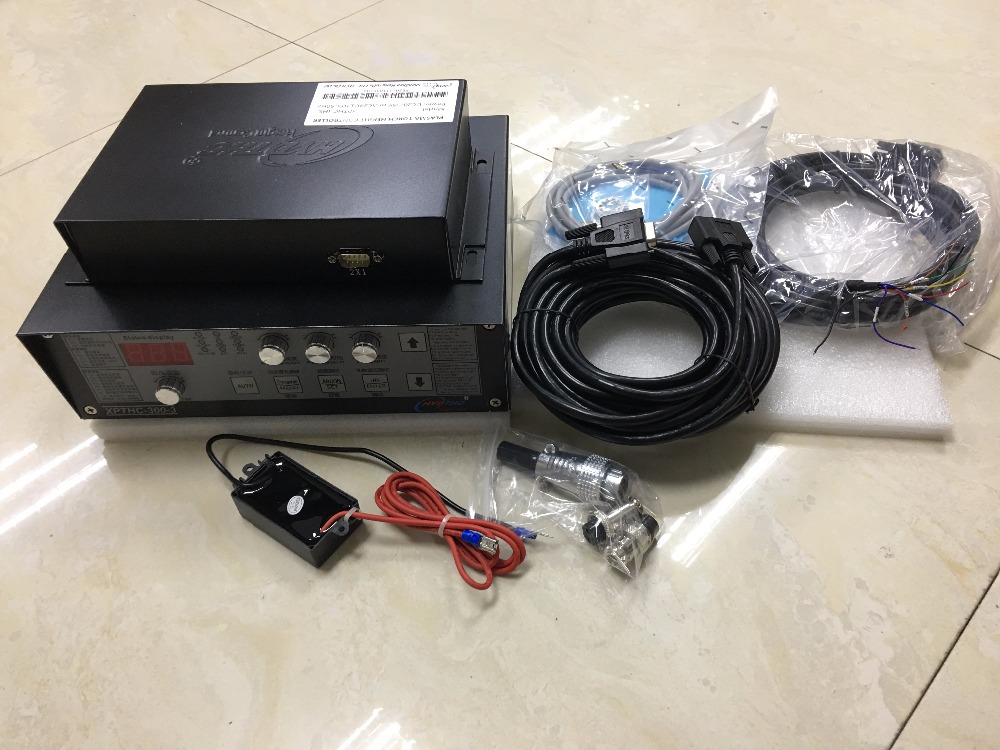

XPTHC-300 is our new CNC plasma torch height control, comparing to XPTHC-100, it has new features as Dual speed IHS to protect torch, Torch retract time adjustable to save cycle time, more indicators for trouble-shooting, work more stable.
THC key features as follow,
A, Auto Initial Height Sensing(IHS)

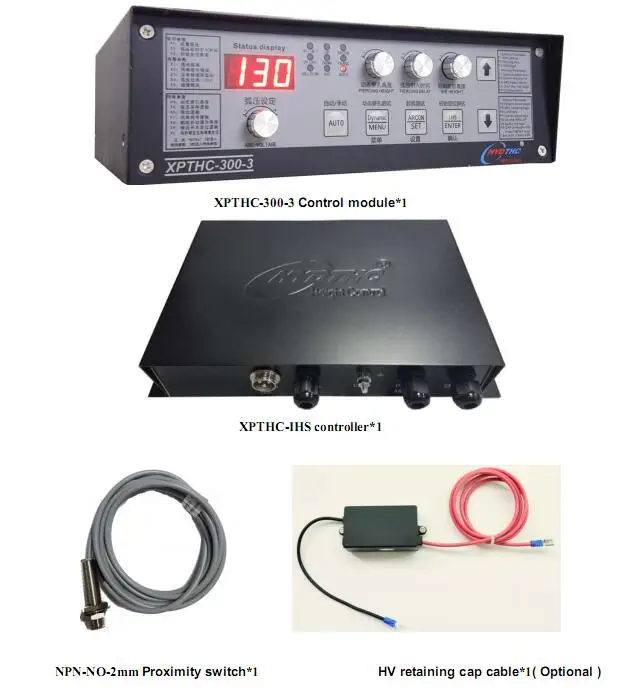

Torch Retaining Cap IHS and Proximity Switch IHS, Proximity Switch IHS is backup for Torch Retaining Cap IHS for cutting dirty/rusty workpiece, needing the Anti-Collision Fixture designed by HYD (breakaway kit ).
B, Anti-Collision Function
No matter THC is on Auto mode or Manual mode, when torch head touches the workpiece, THC automatically lift torch up to IHS height. So with XPTHC-300, user no need to worry about torch head crashing.
C, Freeze Auto Height Control on Corner Signal
XPTHC-300 would freeze Auto Mode on receiving corner signal from CNC system to avoid torch diving, and we have a unique design to backup this function.
D. Set Pierce Time
Set the Button (Set PIERCE) to set Pierce Time.
E. Manual Operation

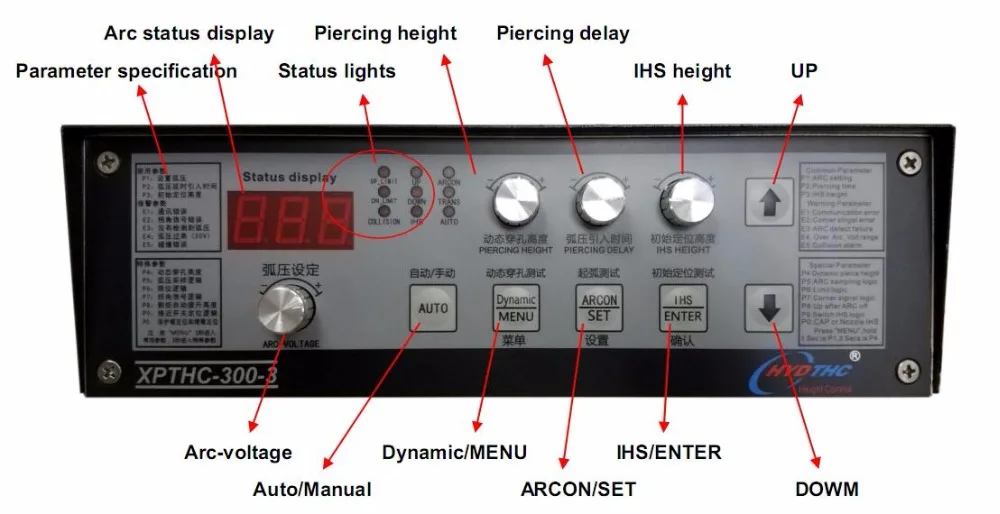

Many functions can be Manually operated on THC Operation Panel such as setting Auto/Manual, Up and Down, testing of IHS and Arc Start....etc
F. Arc Voltage Divide
Isolation Voltage Divide detection, the Voltage Divide ratio is 100:1/50:1.
