Key Features
● Advanced IGBT technolgoy , Synergic Controlled, very easy and simple operation.
● 32bit MCU and LCD display.
● Functions of MIG /LIFT TIG / MMA .
● 2T/4T for MIG and TIG make convinient welding.
● Fit for spoon gun.
● Gas/Gasless function
● Light weight and compact design.
● Power generator operation friendly.
● Intelligent protection: Over-voltage, low-voltage, over-current, over-heat.
● Very clear wire melting droplet transfer, very few spatters.
● Fast, precise, clean arc ignition and arc ending.
● 5KG & 1KG wire feeder .
● CE certificate.
● PFC function is optional.
Specification
|
Model |

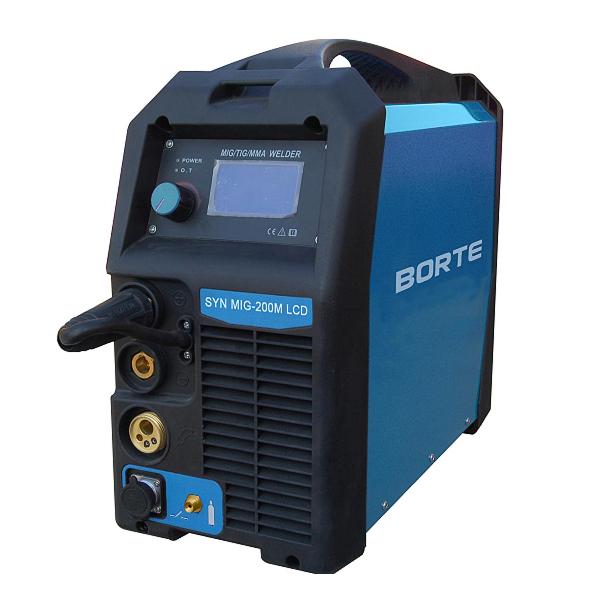

SYN MIG-200M LCD |
||
|
Input |
AC230V, 50/60Hz |
||
|
Rated input capacity |
4.0KVA |
||
|
Duty Cycle(%) |
200A @ 25% 125A @ 60% 100A @ 100% |
||
| Protection Class | IP23S | ||
|
Actul ship Dimension(mm) |
600x330x500 |
||
|
N.W(kg) |
14 |
||
|
|
MIG |
MMA |
TIG |
|
Rated input capacity |
6.1 |
7.2 |
4.6 |
|
Current Range（A） |
10-200 |
10-170 |
10-200 |
|
No-load voltage（V） |
65 |
65 |
65 |
|
Work voltage（V） |
24 |
28 |
18 |
