Key Features

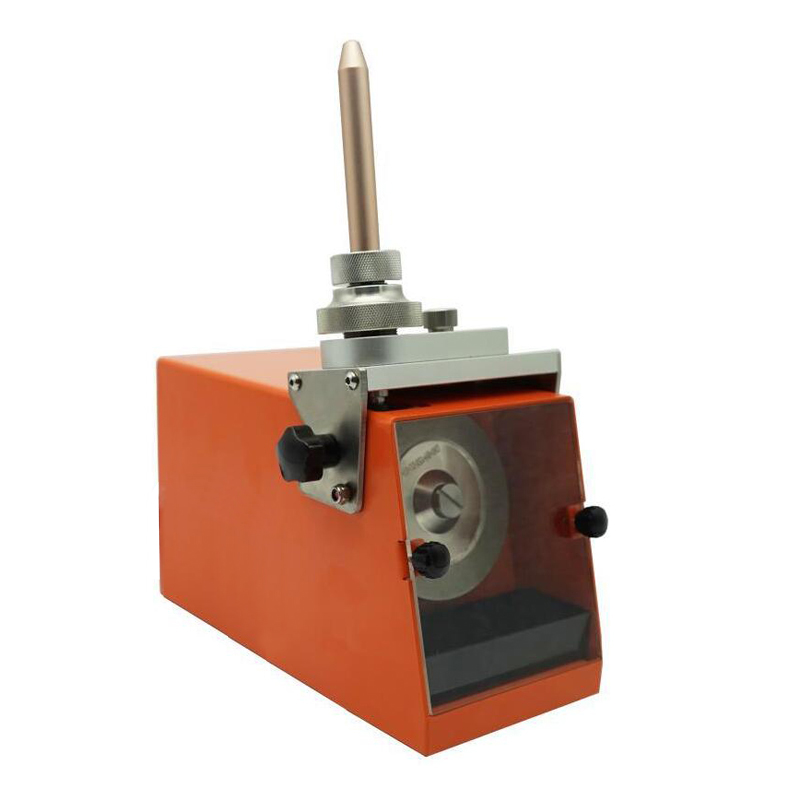

● Portable Tungsten rod grinder.
● Applicable to 1.6 to 5.0mm tungsten.
● Wide grinding angle adjustment range.
● Hot sell , Cheap Price with high quality.
● CE certificate
Specification
| Model | TG-60 |
| Voltage | AC220V |
| Frequency | 50-60HZ |
| Power | 60W |
| Disc Type | Sanding Disc |
| Disc Diameter | 90mm |
| Disc rotating speed | 5000r/min |
| Minimum grinding length | 60mm |
| Applicable tungsten diameter |
1.0-5.0mm |
| Tungsten Collet | The standard is 2.4mm . The other size is optional. |

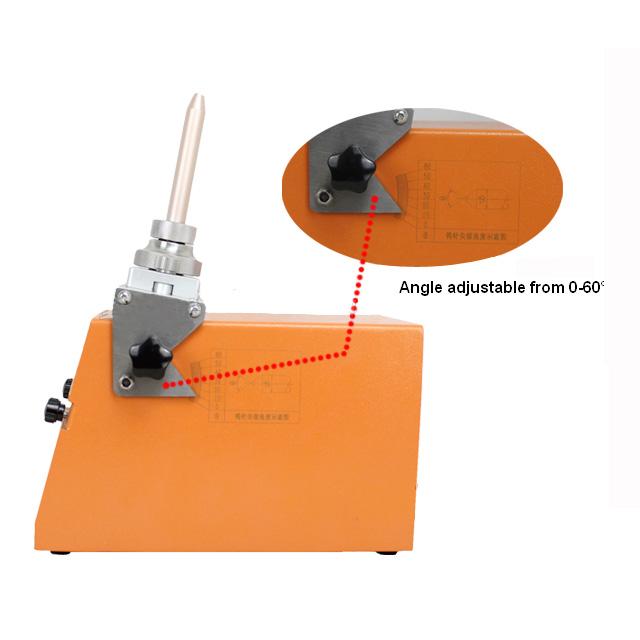

| Grinding angle range |
0°-60° |
| Dimension | 230x170x200mm (W x Lx H) |
| Weight | 4KG |
Grinding Angle Adjustment Range Chart
| Tungsten electrode diameter | Grinding Angle | Grinding length |
| 1.6mm | 20° |
5-25mm |
| 2.4mm | 20° | 5-10mm |
| 3.2mm | 20° | 5-10mm |
| 1.6mm | 30° | 5-25mm |
| 2.4mm | 30° | 5-15mm |
| 3.2mm | 30° | 5-10mm |
| 1.6mm | ≥40° | 5-25mm |
| 2.4mm | ≥40° | 5-20mm |
| 3.2mm | ≥40° | 5-20mm |
