Perfect machine to replace the other brands like TBI , Binze, J.Thielmann, etc.
The OEM service are available.
Video

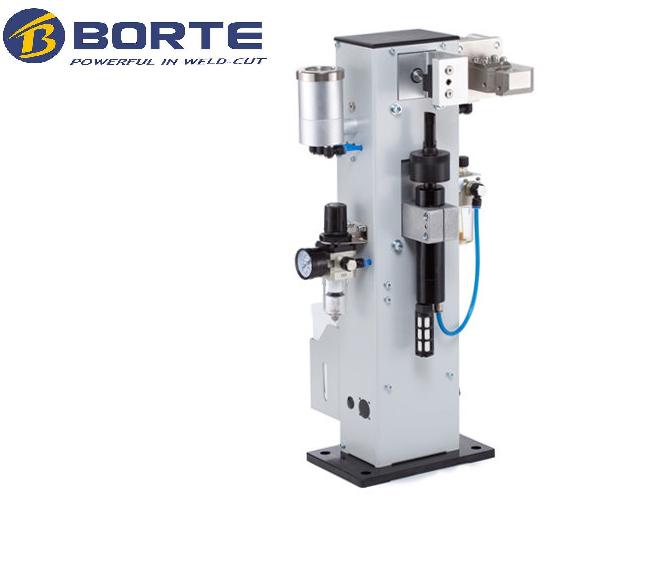

Torch Cleaning Station TRS-CC
Introduction
TRS-CC torch cleaning stations – the complete solution for reliable automatic servicing of torch heads. Quick and easy to install, just “Connect & Clean ...”, the compact torch cleaning stations TRS-CC stand for top reliability. Combined in a single station, no less than three systems guarantee optimally timed processes and an increase in plant availability. stands for top reliability and availability, providing high efficiency over a long service life.
Torch cleaning station "DRS-LC"
● Precise and effective cleaning for almost all robot welding torches
● Tried-and-trusted cutter principle, suitable even for heavy spatter adhesion
● Precise clamping of the gas nozzle fixes the torch in place during the cleaning process
Front injector “TMS-VI”
● Direct economical spraying of anti-spatter agent reduces welding spatter adhesion and extends service intervals
● Clean environment thanks to encapsulated nozzle design and collecting pan for soiled residual oil
● Precise clamping of the gas nozzle fixes the torch in place during the cleaning process
Wire cutting fixture “DAV”
● The combined clamping and shearing action guarantees precise cutting quality and ensures optimum arc-ignition.
● The specific action of shearing is performed in order to get straight welding wires and smooth shear plane, and further exact TCP measurement.
Application area:
● MIG/MAG welding torches for all common torch brands
General data of TRS-CC:
Control voltage: 24 V DC.
Output: 24 V DC 150mA
IP Code: IP21.
Ambient temperature: + 5°C to + 50°C.
Compressed air supply: 6mm.
Operating pressure: 6–7 bar.
Total weight: 20 kg (incl. TMS-VI and DAV).
Torch cleaning station:
Pneumatic motor: 600~650 rpm.
Maximum cleaning depth: 50 mm.
Air consumption: 400 l/min.
Front injector “TMS-VI”:
Capacity of the oil bottle: 500ml.
Capacity of the soiled residual oil bottle: 500ml.
Wire cutting fixture “DAV”:
Solid wire: up to 1.6 mm
Flux cored wire: up to 3.2 mm
Cutting time: 0.5 sec
