Key Features
● Advanced IGBT technology
● Full digital DSP control technology
● 6sets parameters can be stored.
● Compact Type, four driver roller built-in wire feeder.
● Single Pulse and Double Pulse are selectable, Special suitable for super-thin aluminum plate of 0.45mm welding.
● With Trolly, Easy To Move,High Convenience For MIG Welding;
● Synergic adjustament, Easy to operate with memory function. 6sets welding parameters can be saved.
● High Duty Cycle,Efficiency Is 3 Times Of Traditional Argon Welding,Energy Saving,High Reliability.
● Quick Welding Speed,Little Splash,Deep Pool,Good Welding Appearance.
Specification
|
Model |

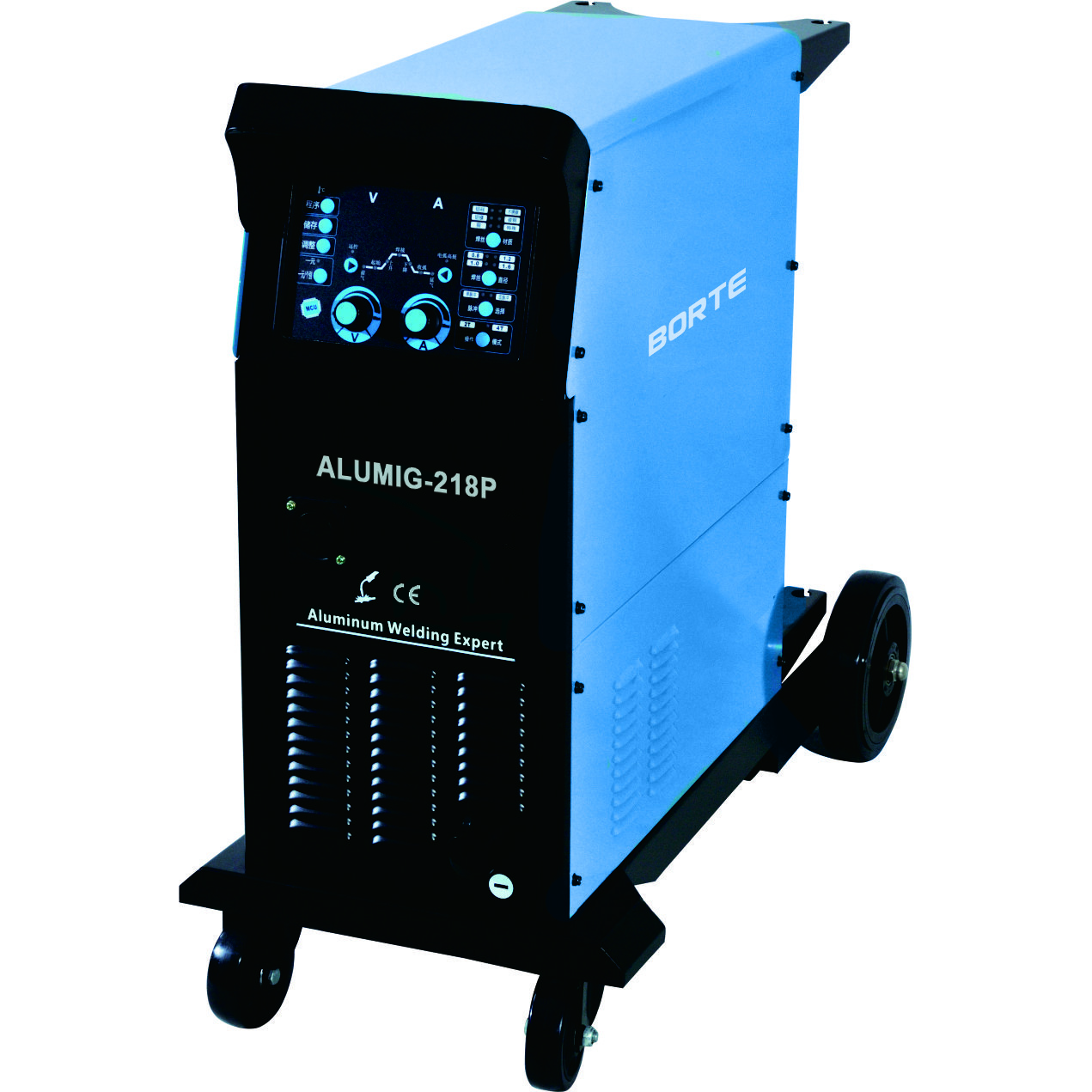

ALUMIG-218P |
ALUMIG-258P |
| Input | 220V±15% | 380V±15% |
|
Rated input capacity |
6.4KVA |
9.2KVA |
| Non-load Voltage | 45V | 45V |
|
Current Range |
50 -210A |
50 -250A |
|
Duty Cycle |
60% |
60% |
|
Welding Wire(mm) |
0.8-1.2 |
0.8-1.2 |
| Insulation Class | F | F |
| Protection Class | IP21 | IP21 |
| Efficiency | 85% | 85% |
| Power Factor | 0.93 | 0.93 |
|
Weight (kg) |
56 |
56 |
|
Dimension (mm) |
920x440x830 |
920x440x830 |
