Demo operation
Handheld TIG welding
Auto TIG welding

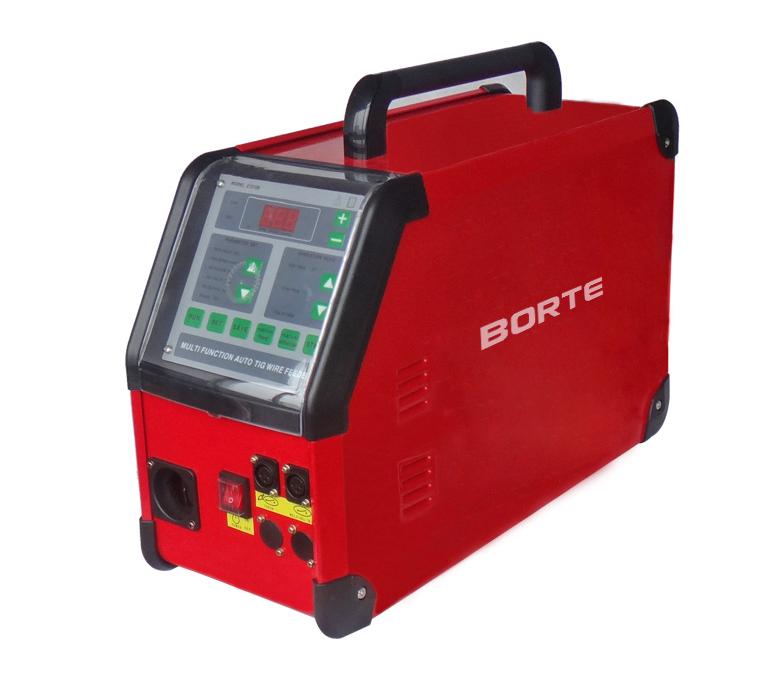

Key Specification:
| Model | ET2106 |
| Input Voltage | AC 220V, 50/60 Hz |
| Input Capacity | 120W |
| Wire Spool Capacity | D300mm (1KG, 5KG, 10KG, 15KG) |
| Applicable Wire Size(mm) | 0.8 / 1.0 / 1.2 / 1.6 |
| Feed Speed | 0-800cm/min |
| Feed Delay time | 0-10s |
| Withdraw Time | 0-10s |
| Arc Delay Time | 0-10s |
| Pulse Feed Time | 0-10s |
| Pause Time | 0-5s |
| 2T / 4T | yes |
| Weight | 17KG |
| Dimension(CM) | 42x21x57 |
Key Features:
● 2T / 4T
● automatic wire filling speed can be adjusted continuously;
● drawing the wire back function;
● delay the wire feeding function;
● pulse feeding function;
● continuous wire feeding function;
● dual drive wheel feeding system, applicable to a variety of wire diameter of wire
● applicable to all kinds of argon arc welding machine;
● greatly enhance the work efficiency, reduce labor intensity, save labors and equipment cost.
● good welding effect is stable, improve the quality of products;
● various function parameters of independent continuous adjustable.
● adjusting the parameters with high accuracy.
● the standardization of products and components, according to the actualapplication of matching.
● can be widely used in aluminum alloy, stainless steel, welding of low carbon steel and non-ferrous metal and many other materials;
● argon arc welding, laser welding and other welding methods.
● and can be applied to artificial, the welding process automation and robotplane.
