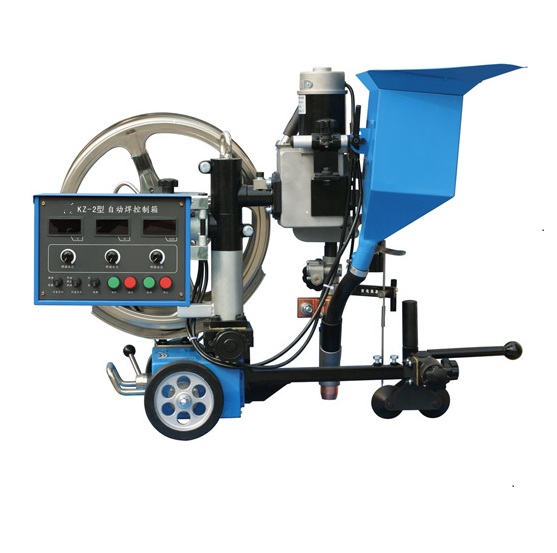

Key Features:
● Driven by two wheels, marches stably, wide welding range
● Flexible to do adjustment, head can be lifted and turned around
● Beam can be lifted and turned around
● Turnaround and moving angle of flux container can be adjusted at will
● The double-driving wire feeding instrument is equipped with aligning instrument, feeding wire stably and correctly, and with big driving force, the wire is feeding strongly.
Specification
| Model | MZ-10-D |
| Welding speed | 0~1.2m/min |
| Wire feeding speed | 0.3~3.0m/min |
| Vertical adjustment range of beam | 70mm |
| Adjustment range of head (mm) | 48 ´ 80 ´ 30 (up and down, right and left, back and front) |
| Turning angle of beam around the tractor | ±90 ° |
| Deflextion angle of welding torch | ±45 ° |
| Deflextion angle of head | ±90 ° |
| Capacity of flux container | 6L |
| Capacity of wire container | 25Kg |
| Weight | 52Kg |
