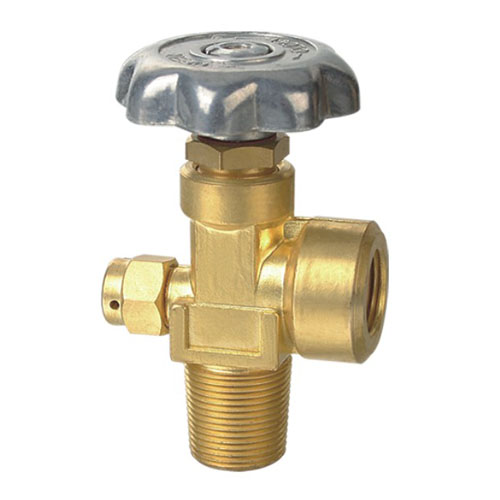

QF-8B Oxygen Standards series valve for Cylinder

Home > Gas Welding/Cutting > Valves & Cylinder > BT004712

Categorie

Toys: Gas Cutting Machines; Welding & Cutting Kits; Gas Cutting & Welding Torches; Gas Torch Flame Gun; Regulators; Cutting Nozzle; Welding Pipe; Heating Nozzle; Flashback Arrestor; Soapstone & Holder; Tip&Nozzle cleaner; Spark Lighter & Flint Stone; Spanner & Wrench; Valves & Cylinder; Others( Adapter, Gas saver, Valve...)

Browse History

QF-8B Oxygen Standards series valve for Cylinder

QF-8B Oxygen Standards series valve for CylinderBT004712

Brand:

USD

$0.00 USD

Note: Different prices will be automatically shown above when you input different level quantity for each relevant specification. Once your quantity lies in “inquiry”, please add it to cart and continue shopping, we will confirm you the price shortly once you submit the order successfully.

Units	Price per Unit (1 Unit = 1 pc)
1--199	Need to log in
200--499	Need to log in
above500	Need to log in

Quantity:

This item has been added to shopping cart.

View Shopping Cart Continue Shopping

Specification

No.	Type	Porduct	Medium	Working pressure	公称通径	Outlet Thread	Inlet Thread	Safety Temperature
								pressure
				wp/(Mpa)	DN (mm)			Mpa
1	QF-2	Flapper Type Valve	O2, Air,N2	15	4	G5/8	GB8335 PZ27.8	21±1.5
2	QF-2B	Flapper Type Valve	O2, Air,N2	15	4	G5/8	GB8335 PZ27.8	21±1.5
3	QF-2B3	Flapper Type Valve	O2, Air,N2	15	4	G5/8	3/4-14-NGT	21±1.5
4	QF-2C	Flapper Type Valve	O2, Air,N2	15	4	G5/8	GB8335 PZ27.8	NO
14	QF-2D	Neddle Type Valve	O2, Air,N2	15	4	(FEMALE)G5/8	GB8335 PZ27.8	NO
19	QF-2G	Flapper Type Valve	O2, Air,N2	15	4	(FEMALE)G5/8		21±1.5
6	QF-6	Flapper Type Valve	O2, Air,N2	15	4	(FEMALE)G5/8	GB8335 PZ27.8	21±1.5
14	QF-8	Coupling Type Valve	O2, Air,N2	15	4	G1/2	GB8335 PZ27.8	NO
15	QF-8A	Coupling Type Valve	O2, Air,N2	15	4	W21.8×1/14	GB8335 PZ27.8	NO
16	QF-8B	Coupling Type Valve	O2, Air,N2	30	3	W22×1/14		NO
17	QF-11	Diaphragm Type Valve	O2, Air,N2	15	2	W21.8×1/14	GB8335 PZ19.2	NO
18	QF-011	Diaphragm Type Valve	O2, Air,N2	15	2	W21.8×1/14		21±1.5
3	CGA540	Flapper Type Valve	O2, Air,N2	15	4	CGA540	3/4-14-NGT	21±1.5
6	CGA540C	Flapper Type Valve	O2, Air,N2	15	4	CGA540	1-11½-NGT	21±1.5
7	CGA5401/2	Flapper Type Valve	O2, Air,N2	15	4	CGA540	3/4-14-NGT	21±1.5

There are currently no optional accessories for this item.
