Key Features
● Advanced Mosfet Inverter technology.
● HF/Touch arc piloting, narrow and smooth cutting seam.
● Energy concentration, fast cutting speed, smooth cut, less deformation.
● Over heat, over current, over voltage, etc protective electric circuit built-in, safety operation.
● Ideal equipment to cut all kinds of conductive material such as stainless steel, copper, carbon steel and aluminum, etc.
● CE Certificated.
Specification

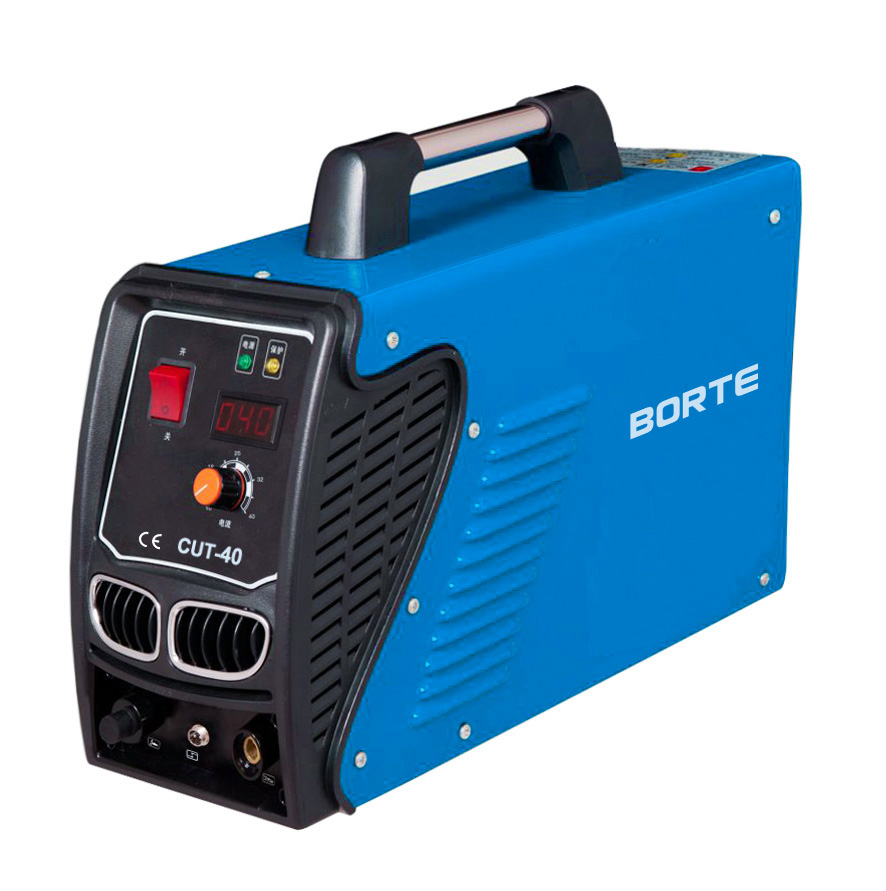

| Model | CUT-40 |
| Rated Input Voltage | 220V |
| Rated Input Power | 4.9KVA |
| No-load Voltage | 230V |
| Rated Output Current | 40A |
| Rated Output Voltage | 96V |
| Range of Output Current | 14-40A |
| Max Cutting Thickness(Carbon Steel) | 12mm |
| Quality Cutting Thickness(Carbon Steel) | 8mm |
| Range of Output Voltage | 85.6-96V |
| Duty Cycly | 60% |
| Arc Piloting | HF/Tourch |
| Insulation Grade | F |
| Protection Class | IP21S |
| Dimension(mm) | 505x250x440 |
| Net Weight | 9kg |
| Gross Weight | 10kg |
