Key Features
● Multifunction of AC/DC TIG&MMA Pulse Welding.
● Function of 2T/4T, improving the working efficiency.
● Reactive power correction, inverter, soft switch technology, square wave power supply.
● Strong capability of oxide film cleaning, fantastic welder performance.
● Thermostatic protection, over-voltage protection, over-current protection, under-voltage protection.
● High duty cycle, continuous operation without interruption at large current.
● DC welder suitable for stainless steel, alloy steel, carbon steel, copper, titanium, etc.
● AC welder suitable for aluminum and aluminum alloy.
● Included with the 4M foot pedal(connector:2pins+3pins)
Specification
Model |

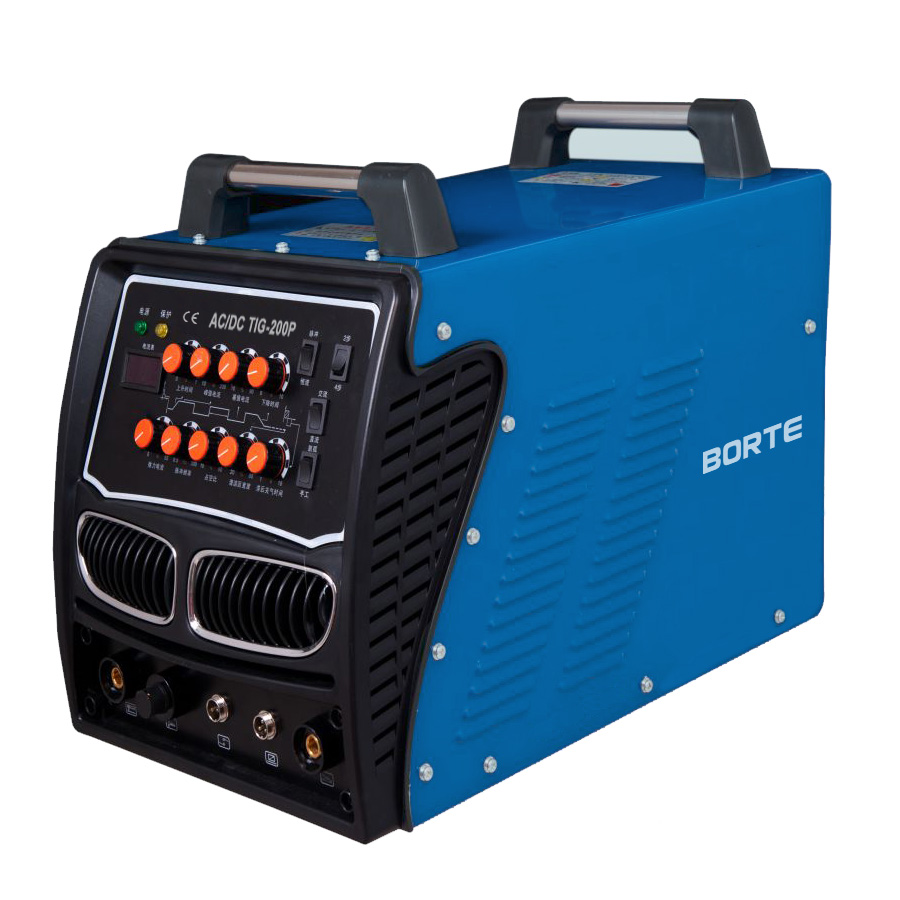

AC/DC TIG-200Pulse |
Input voltage(V,Hz) |
AC230V, 50/60Hz |
Rated input current |
20A |
Input power capacity(KVA) |
4.5KVA |
Output current |
20-200A |
Arc force(A) |
0-100A |
No-load voltage |
56V |
Working Voltage |
18V |
Pre-flow time(S) |
0-2S |
AC output frequency |
60Hz |
Clean area width(%) |
20-80 |
Down-slop time |
0.5S |
Base current(%) |
10-90 |
Pulse frequency |
0.5-300 |
Pulse Duty(%) |
10-90 |
Remote control |
Yes |
Arc Initiating |
HF |
Efficiency(%) |
85 |
Duty cycle(%) |
60 |
Power factor |
0.93 |
Efficiency(%) |
80 |
Insulation class |
F |
Protection Level |
IP21S |
Dimension(mm) |
493x330x320 |
Weight(Kg) |
29 |
Ship Dimension(mm) |
700x400x430 |
Ship Weight( Kg ) |
30.3 |
