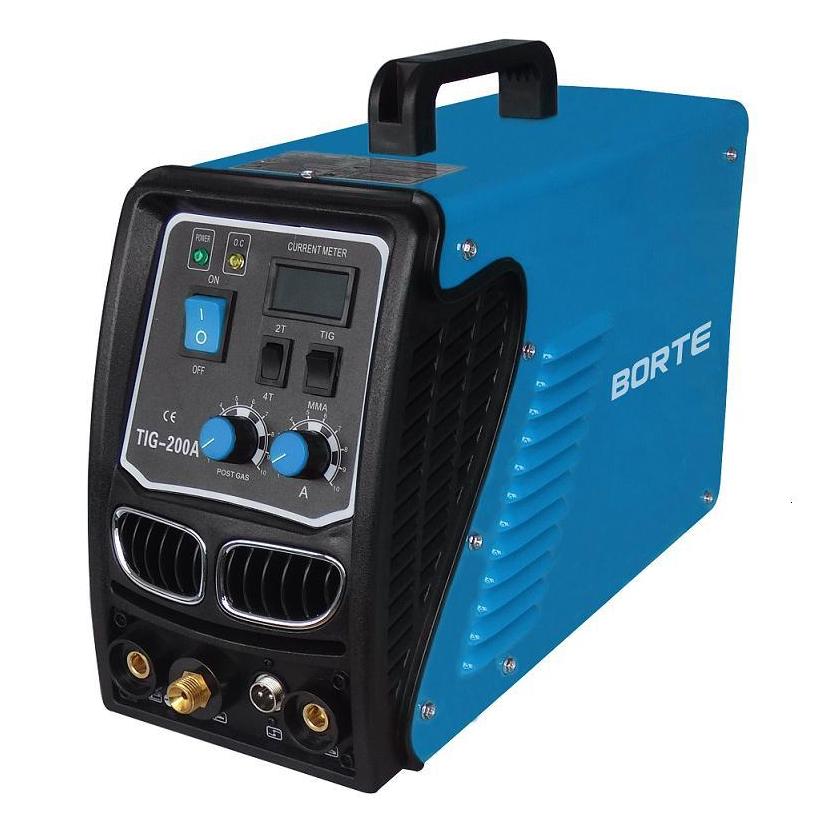

TIG-200A
  • TIG-200A

TIG-200ABT004282

Brand: BORTE
$85.00 USD

Note: Different prices will be automatically shown above when you input different level quantity for each relevant specification. Once your quantity lies in “inquiry”, please add it to cart and continue shopping, we will confirm you the price shortly once you submit the order successfully.

Units Price per Unit (1 Unit = 1 Set)
1--19Need to log in
above20Need to log in

This item has been added to shopping cart.

View Shopping Cart  Continue Shopping

Groupbuy Wishlist

Lower Price, Buy Together. We will release the groupbuy for this item by collecting the information from your Groupbuy Wishlist and offer you an unbelievable price.

*

*

*


Key Features

● TIG/MMA welding function.

● 2T/4T.

● Post Gas delay time is adjustable.

Advanced inverter technoloty, the operating frequency reach up to 100KHz, quick dynamic response.

● High frequency arc and pulse thermal arc booster design, excellent arc performance.

● Automatically over-voltage and over-current protection.

● Wide operating voltage range, power grid adaptable, high duty cycle, more suitable for factory continuous operation.

● Applicable Materials: Carbon steel, low alloy steel, stainless steel, copper and other metal materails.

● CE certificated.


Specification

Model TIG-200A
Rated Input Voltage

220V±15%

Rated Input Power

TIG:6.3KVA

MMA:9.5KVA

No-load Voltage 56V
Rated Output Current

TIG:200A

MMA:200A

Rated Output Voltage

TIG:18V

MMA:28V

Range of Output Current

TIG:10-200A

MMA:20-200A

Range of Output Voltage

TIG:10.4-18V

MMA:20.8-28V

Duty Cycle 60%
Insulation Grade F
Protection Class IP21S
Dimension(mm) 460x270x310
Net Weight 12.8kg
