Key Features
● IGBT Module Inverter Air plasma cutting power source.
● Can do plasma air gouging and do plasma marking. Ideal for replacing the Hypertherm plasma power source.
● non-Touch arc piloting, narrow and smooth cutting seam.
● Energy concentration, fast cutting speed, smooth cut, less deformation.
● Time delay function can protect the cutting torch effectively.
● Self-lock/non-self-lock cutting function can match the auto cutting.
● With CNC interface.
● The standard is HF model. The non-HF model are optional.
Specification

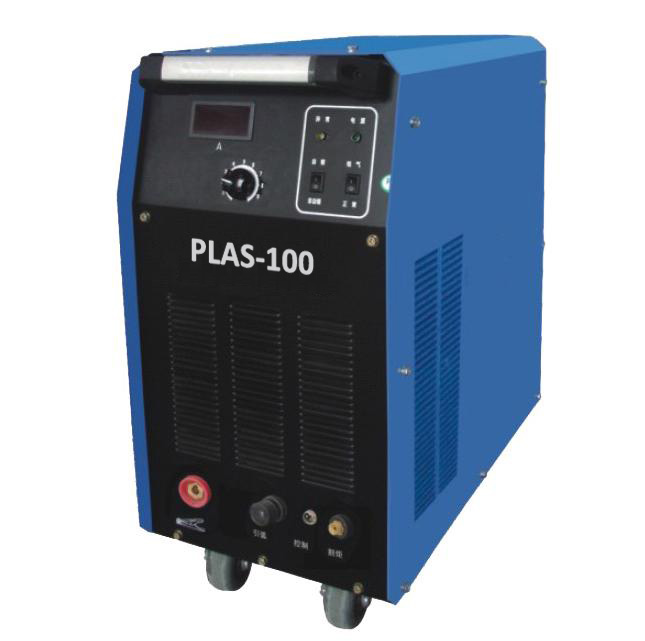

| Model | PLAS-100 |
| Rated Input Voltage | 380V±15% |
| Rated Input Power | 14.5KVA |
| Range of Output Current | 30-100A |
| Max Cutting Thickness(Carbon Steel) for handy cutting | 40mm |
| Quality Cutting Thickness(Carbon Steel) for handy cutting | 1-22mm |
| Quality Cutting Thickness(Stainless Steel) for CNC cutting | ＜15mm |
| Duty Cycly | 80% |
| Arc Piloting | Non-HF/non-Tourch |
| Insulation Grade | F |
| Protection Class | IP21 |
| Dimension(mm) | 555x310x510 |
| Net Weight | 60kg |
