Key Features
● It is widely used for welding aluminium magnesium alloy structures of ships, offshore platforms, locomotives & carriages, motor vehicles, containers, cryogenic
vessels and so on. Its weld metal has good resistance to brine corrosion.
Specification
Chemical Compossition of Deposited Metal(%)，AWS ER5183(GB SAl 5183 [AlMg4.5Mn0.7(A)])
| Si | Fe | Cu | Mn | Zn | Al | Ti | Mg | Cr | Be | |
| Typical | 0.40 | ≤0.4 | ≤0.1 | 0.05-1.0 | ≤0.25 | Balance | ≤0.15 | 4.3-5.2 | 0.05-0.25 | ≤ 0.0003 |
Mechanical Properties of Deposited Metal，AWS ER5183(GB SAl 5183 [AlMg4.5Mn0.7(A)])
| Melting temperature | Corrosion resistance | Density | |
| Typical | 579℃～638℃ | A (Gen) A(Scc) | 2.66g／㎝³ |

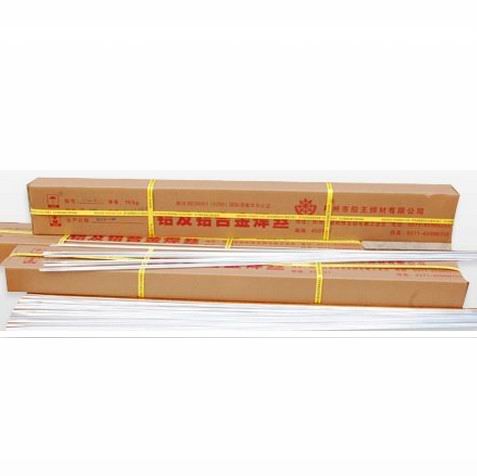

Packing, AWS ER5183(GB SAl 5183 [AlMg4.5Mn0.7(A)])
| Packing | 1meter/pc, 10kgs/carton | |||||
Note: 1unit=1kg
