Beside you select the cutting mode, cutting width, cutting length, please also let us know the material of the plate and the max cutting thickness of the plate you will do. How to choose a suitable cnc cutting machine? Please click the Selection Guide.

We'd like to recommend the best suitable CNC cutting machines for you. Customerized cutting range is available as per your specific requirement.

Applications

It can be widely used in the industries as aerospace, agricultural machinery, construction machinery, railway manufacturing, elevator manufacturing, special construction vehicle, tool manufacturing, oil machinery manufacturing, food machinery, decorated advertizing, foreign processing service and all kinds industries related to mechanical manufacturing.

Cutting materials

It can be used to cut  Carbon steel by  flame cutting  and carbon steel,  stainless steel, copper alloy, aluminum alloy, titanium alloy, electrolytic plate, aluminized Steel Sheet by plasma cutting.

Key features

I. Characteristics of Products and Application Scope

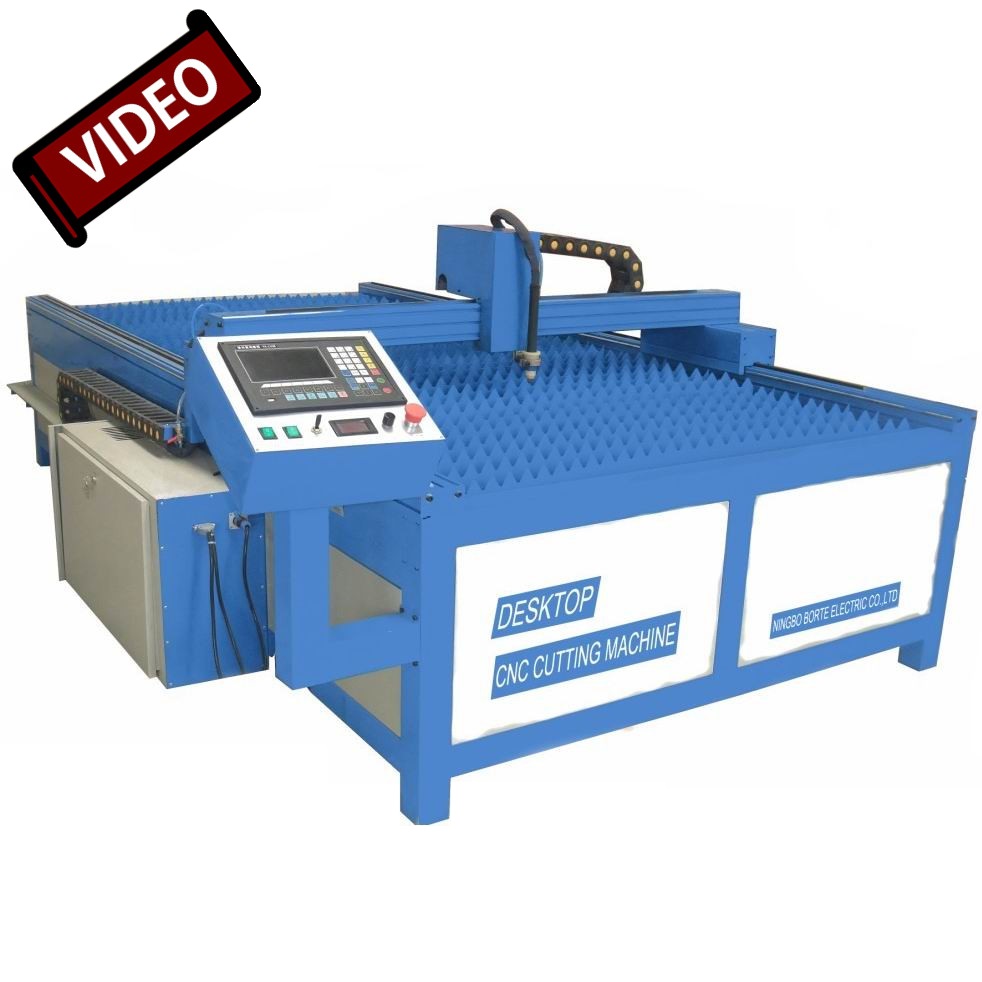

Table Numerical Control Cutting machine is able to cut off various metal materials according to any graphs. The roughness of the cut can reach up to 25(▽3). In general, the cut surface after cutting needs no further surface processing. It is provided with advantages such as high automation, easy operation, high accuracy, high reliability, low price, and simple operation & maintenance, and is now widely This machine is widely applied to industrial and commercial, sheet metal, chassis cabinets, fan Pipe industry

II. NC system

System: this system is a special NC operation system jointly developed by our company and Shanghai Jiaotong University, with strong operation reliability, rich functions, and easy operation.
All buttons/switches are designed in humanized way, which are comfortable, convenient and fast.
The core control system is formed with ARM and DSP special motor control chip.
System advantages:
1. Super-strong anti-interference ability of plasma: the case is of all-steel anti-magnetic structure, the system is designed to have high reliability and coordinated with all opto-coupler isolation control, thus having the strongest abilities of anti-interference of plasma and magnetic electricity. The host interior and the system are additionally provided with HF anti-jammer, and all internal circuits use high quality shielded wires, effectively preventing abnormal operation of the system arising from the plasma HF interference system. Additionally, we also provide anti-interference magnet ring which is peculiar to Yahong Cutter, making our machines have the strongest anti-interference ability and more stable operation. It can resist any EM interference. Moreover, it has no requirements on plasma, and high, medium and low grades can be used. There is no worry about strong current.
2. Unique cutting functions:
(1) Kerf can be automatically compensated
(2) Cutting can continue when power fails
(3) Continuous return can be done
(4) Positioning and cutting can be done randomly
(5) Off-line cutting can be done：
3. Provided with steel plate correction function
4. Fool style operation. The operation display of the system adopts level-by-level functional window prompt mode, is clear at a glance and able to be mastered in a few minutes.
5. 7" high-resolution LCD, with color graphs and the same graphic display style with AUTOCAD, is able to zoom in or zoom out graphs and track the cut point in zoom-in state. Cutting state is clear at a glance. It is operated more conveniently.
6. All-Chinese or English menu system facilitates the operation by customers at home and abroad.
7. Excellent graph library
8. It supports various nesting software such as EIA code (G code) and Fastcam, SmartNest TYPE3.
9. All IO status and button status for startup self-diagnosis facilitate us to perform inspection and troubleshooting.
10. Pre-mounted USB interface facilitates program transmission and system upgrading. Moreover, we also specially provide anti-interference USB extended wire to prevent system USB from being damaged due to repeatedly pulling out and inserting for a long time.
11. Multiple files can be imported/exported at a time, saving disk-reading time.
12. Provided with parameter backup function.
13. Online upgrading function.
14. Supporting both flame and plasma cuttings.
15. Separately controlling input and output of Oxygen, gas and plasma, without mutual interference.
16. Supporting edge cutting.
17. It is able to perform real-time acceleration or deceleration without pause during the course of motion according to the cutting conditions.
18. It is able to limit the speed automatically at the corner based on the steel plate thickness so as to prevent over-burning effectively and ensure cutting quality.
19. Dsp high-speed and high accuracy interpolation control, high-speed and smooth operation, with low noise.
20. It is able to set initial speed and acceleration/deceleration time randomly.
21. "Offset cutting" function can preventing plates from being wasted due to discharging circulation errors.
22. The machine is provided with idling simulation function, which is able to perform the simulated cutting in advance.
23. Set up different administration authority and the corresponding password to safeguard the
interests of managers.
24. Long-distance remote control can control the machine to move forward ,backward, left,
right and cutting start, stop and so on (optional configuration).

●English, Russia, French, Portuguese, Spainish, Chinese Language swithable for the CNC system operation.

III、Characteristics of mechanical structure：

1、Gantry structure
(1)Integral pipe welding, artificial aging sheet, strong, good rigidity, no deformation.(2)XY axis using the domestic precision gear rack ( 7 accuracy ) transmission, ensures the cutting Speed and accuracy.(3)Z axis adopt arc voltage height automatic adjustment, installation of continuous water spray device, to ensure the cutting effect and accuracy.(4)The current adjustable plasma power, according to the material and different thickness adjusting current size of cutting materials, ensure no burr, without residue, effect is good.
2、machine drive
The machine is driven by high precision fine step by step motor driving system. Vertical and horizontal driving device driven by gears and precision rack, gear and rack engagement between automatic backlash, ensure the machine in a continuous motion in high precision
3.Automatic height adjustment system for cutting torch
During the course of cutting, it is key to ensure cutting quality by keeping the constant distance between cutting mouth and workpiece, therefore, the different cutting modes use different height adjustment systems, so that different cutting process requirements can be met.
Arc voltage auto height-adjustment system: the cutting torch height can be automatically adjusted as per output voltage of plasma, therefore, it is only suitable for plasma cutting. Its working principle is that there is certain voltage between steel plate and electrode which is supplied to arc voltage auto height-adjustment system after collecting the voltage signal and being processed by voltage-division module. The system can send a rising or lowering signal to the motor after comparison with the set voltage to keep the set voltage is equal to the collected one, then the motor will stop running. Thus the auto height adjustment function for plasma cutting torch is realized.

Specification

Note: The prices don't include the plasma power source and plasma torch. which will be quoted after get your specific requirements.

          Can be built with a water bed for absorbing the cutting smoking.

         Packed in one wooden box .
