Description

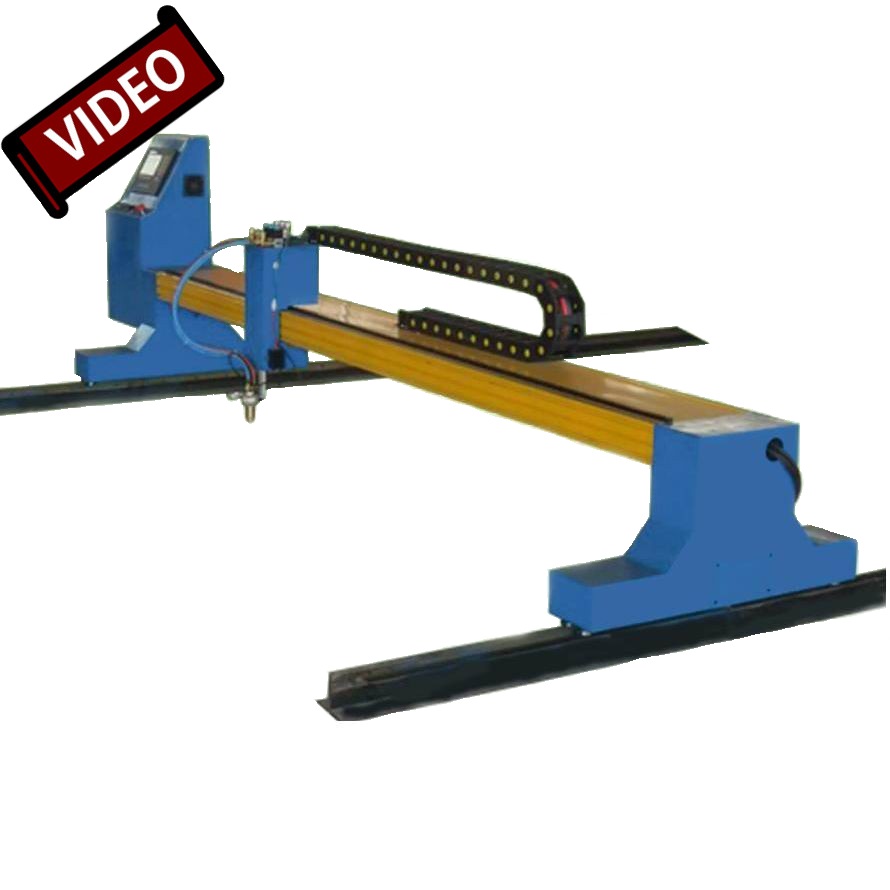

●The Light Gantry NC cutting machines(GNC series) can cut any shapes using flame and plasma cutting processes.
●The machine is wider cutting,more stability and precision.
●The machine are an economical gantry CNC cutting machine.
Applications
It can be widely used in the industries as aerospace, agricultural machinery, construction machinery, railway manufacturing, elevator manufacturing, special construction vehicle, tool manufacturing, oil machinery manufacturing, food machinery, decorated advertizing, foreign processing service and all kinds industries related to mechanical manufacturing.
Cutting materials
It can be used to cut Carbon steel by flame cutting and carbon steel, stainless steel, copper alloy, aluminum alloy, titanium alloy, electrolytic plate, aluminized Steel Sheet by plasma cutting.
Key features
FastCAM nesting Software
● The FastCAM® Software is compatible with other CAD/CAM systems, however the system does not require additional software; You can Draw, Nest and cut from the one programming system. Best of all, FastCAM® allows people at a shop floor level to start profile cutting with the minimum of training. The FastCAM® System produces immediate NC code for a wide variety of cutting machines and there is also a non-NC edition available.
● Draw the part or import a DXF file.
● AUTOCAD DXF data reading/writing through FastCAM nesting software.
● Easy NC program output to PNC by USB memory
● Manual tool pathing.
● Edit, Verify and Output NC code.
● Interactive Nesting.
CNC system ( Model:F2200B Shanghai Jiaoda University brand)
● 64M Memory for users' Programs
● Built-in Library of 45 types commonly used figures
● Break-point&Power-cut restoration
● Returning to reference point
● Kerf compensation
● Revolving
● Mirror image
●English, Russia, French, Portuguese, Spainish, Chinese Language swithable for the CNC system operation
Mechanical structure features:
● Gantry type cnc cutting machine,make the cutting more accurate and steadier.
● Electrical Torch height control for the flame cutting. Arc Voltage Controller and Torch anti-collision device are equipped for the plasma cutting machine.
Specification
| Model | GNC-2500 |
| Input power voltage |
Standard:220V±15% 50HZ 110V 60HZ is optional |
| Modes of cutting | Flame/Plasma |
| Beam Width(mm) | 3000mm |
| Effective cutting width (X axis) | ≤2500mm |
| Track Length(mm) | 1500mm longer than the effective cutting length(Y axis) |
| Cutting hickness(Flame cutting) | 6-200mm(select the suitable cutting nozzle) |
| Cutting Thickness(Plasma cutting) | 0.1-25mm(according to the plasma power source) |
| Cutting Speed(Flame) | 50~700mm/min |
| Cutting speed(Plasma) | according to the plasma power source |
| Gas for flame cutting | Oxygen+Acetylene or Oxygen+Propane |
| Plasma air | Compressed Air |
| Fuel gas pressure | ≤0.1Mpa |
| Oxygen pressure | ≤0.7Mpa |
| Cutting Precision | 0.2mm |
| Control accuracy | ±0.001 MM |

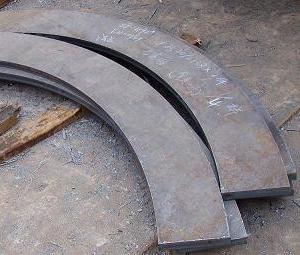

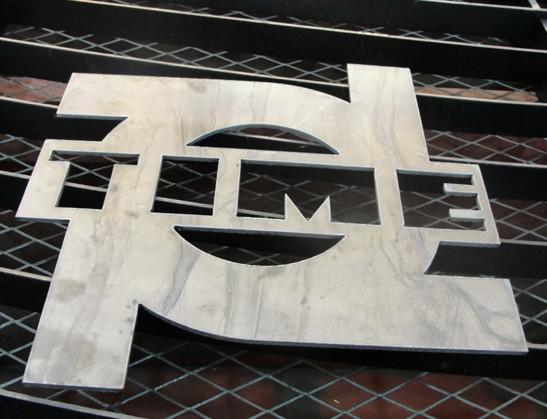

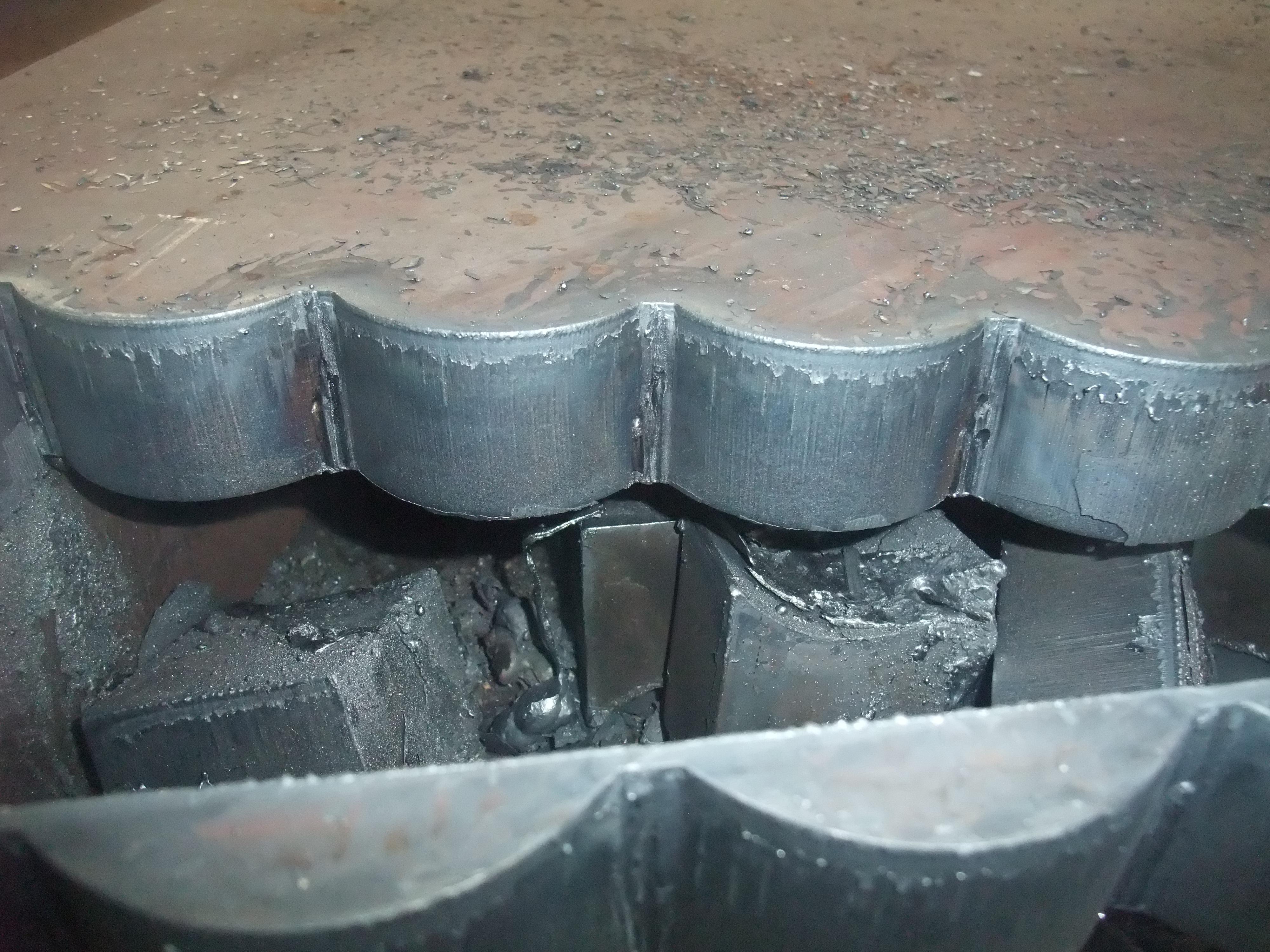

Cutting Samples
Note: The prices don't include the plasma power source and plasma torch. which will be quoted after get your specific requirements.
