Key Features
● can do notching and punching jobs at good efficiency and convenince..
● Hydraulic dive,retum of knife is smooth and prompt by accumulator nitrn.
Specification
| Model | QF28Y-6X200ZK | |
| Function | Cutting Angle | Grooving |
| Cutting and Punching |
90°,45°,135° |
Concave Notching 60X100(mm) Hole Punching Diameter≤35mm |
|
Max.thickness for Common Carbon Steel:6mm Max.thickness for Mild steel&Stainless Steel:3mm |
||
| working table size | 1000X660mm | 530X430mm |
| Working height | 850mm | |
| Dimension | 1150×1250×1100 | |
| Power | 4KW | |
| weight | 1000kg | |
| Oil tank | 50L | |
Please Note:
1. There are two types of machines: notch cutting and hole punching
2. For the hole punching multi-functional notching machine, need the customer to specify the size of the holes(including square holes and plate thickness
3. .For the notch cutting multi-functional notching machine, concave notching 60x100(mm) is standard, plate thickness is less than 4mm.

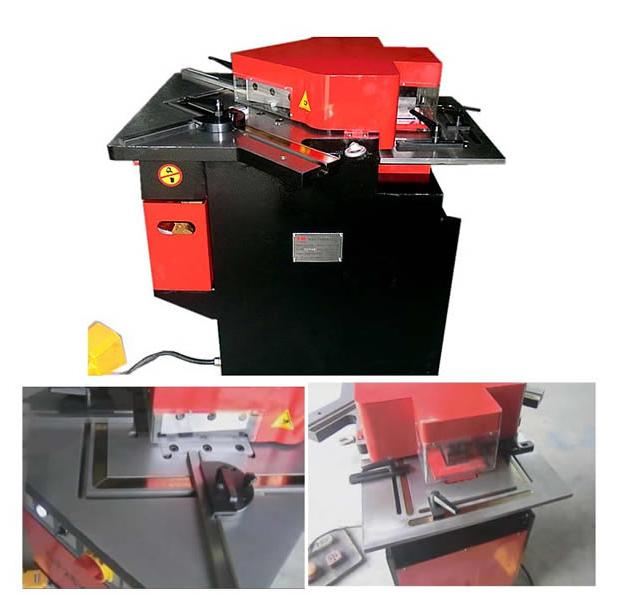

.jpg)
