Key Features
● Lightweight and compact design with open-frame(four durable castors), improve on-site transportation and is suit for many working conditions.
● High Quality with CE Approved.
● Easy maneuver ability and wide appliction.
● Longer service life.
Specification

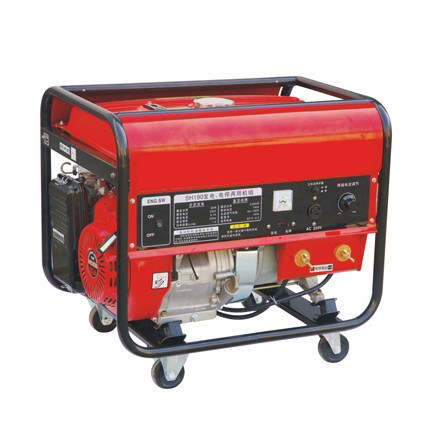

| Model No.SH190D | ||
| Engine |
Engine Type | 1-cyliner, 4-stroke, air-cooled |
| Displacement |
439cm3 |
|
| Rated power | 12.5/3600Kw/rpm | |
| Oil capacity | 1.1L | |
| Starting system | Recoil starter | |
| Fuel type | 90# and better | |
| Welder |
Rated Power | 3.64KVA |
| Rated Current | 140A | |
| Current Adjustment Range | 50-190A | |
| Rated Voltage | 26V | |
| Welding load continuous ratio | 50% | |
| Welding rod diameter | ф2.5～4.0mm | |
| Generator |
Rated Power | 2.0KVA |
| Rated Frequency | 50HZ | |
| Rated Voltage | 220V | |
| Phase Number | Single | |
|
Packing |
Length | 69cm |
| Width | 54cm | |
| Height | 56.5cm | |
| G.W/N.W | 104/98Kg | |
| Ref.QTY/20’FCL(SETS) | 128 | |
There are currently no optional accessories for this item.
