Key Features
● One set,dual function, this one is the advanced product with dual function -generating and welding,.The unit can achieve perfect waveform of the welding voltage,no-fluctuating welding current realize high quality welding operation. The welding arc is super smooth to get the perfect welding quality.Furthermore,its welding current regulation is wide enough to suit most of weld.
● High Quality with CE Approved.
● Longer service life.
Specification

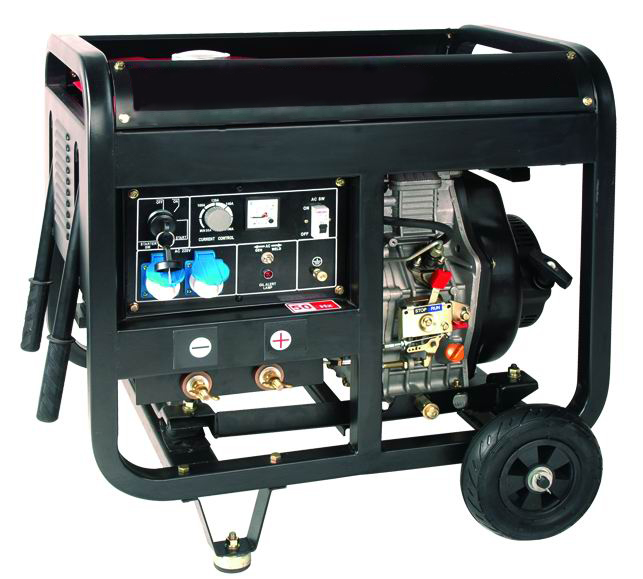

| Model No.BTF6500WE1 | ||
| Generator | Rated frequency (Hz) | 50/60 |
| Rated voltage(V) | 230/240 | |
| Rated speed (r/min) | 3000/3600 | |
| Rated output (kVA) | 2/2.2 | |
| Power factor cosφ | 1 | |
| Phase number | Single phase | |
| Noise level dB(A)@7m (No load-full load) | 74-79 | |
| Structure model | Open-frame | |
Welder |
Welding voltage without load (V) | 65-70 |
| Rated current (A) | 180 | |
| Work voltage (V) | 26 | |
| Current regulation range (A) | 50-200 | |
| Welding load continuous ratio | 60% | |
Engine |
Engine Model | BT186FAE |
| Engine Type | 1-cyliner, 4-stroke, air-cooled, vertical, diesel engine | |
| Displacement [cm³(Cu-in)] | 406 (24.78) | |
| Compression ratio | 19:01 | |
| Rated power [KW(Hp)/rpm] | 6.3 (8.6)/3600 | |
| Rated rotation speed (rpm) | 3000/3600 | |
| T.C.L. | No | |
| Spark plug | 12V electric starter | |
| Starting system | Electric starting | |
| Rotation direction (view from flywheel) | Clockwise | |
| Fuel type | 0＃ (summer), -10＃ (winter) diesel oil | |
| Lube | SAE10W30 (above CC grade) | |
| Low oil pressure alarm system | With | |
| Packing | Net weight [kg(lbs)] | 154 (338) |
| Overall dimension [mm(in)](L×W×H) | 775×485×580 (30.51×19.09×22.83) | |
| 1set/carton, 84sets/20''FT, 168sets/40''HC | ||
