Key Features

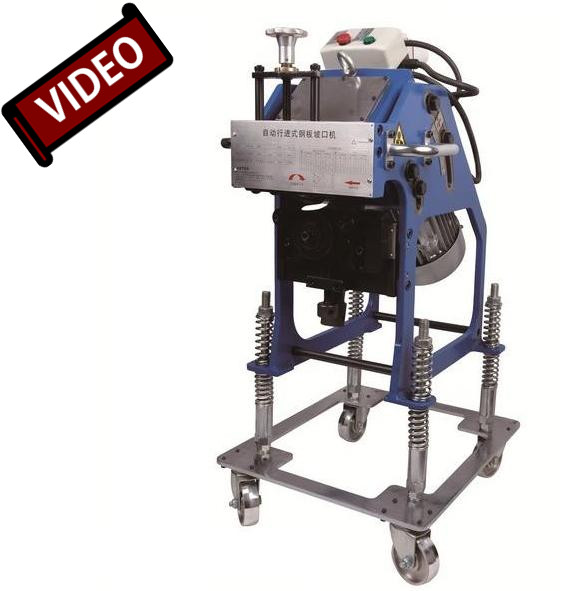

● The device is based on the basic principle of the rolling cut to bevel the plate.
● Suitable for high-volume centralized production, flexible to use in every place of workshop.
● A small investment, no limit working length and high working flexibility.
● During processing, the machine automatically feeds along the edge of plate with high feeding speed and high Efficiency. Without any change of plate shape and plate metallography.
● Suitable for the cutting of ordinary carbon steel, medium carbon steel, stainless steel, aluminum alloy and other materials.
● At the same time, an operator can take care of several devices, the working condition is simple.
Specification
| Model | BT-20B | BT-28B |
| Input Voltage（Main motor) | 380V | |
| Rated Power | 1.5KW | 2.2KW |
| No-load speed | 1450RPM | 1450RPM |
| Max. Bevel Width(W) |
max 12mm/single beveling work max 18mm/several beveling work |
max 16mm/single beveling work max 28mm/several beveling work |
| Plate Width Requirement | ≥75mm | ≥115mm |
| Dia of the Circular plate | ≥110mm | ≥200mm |
| Beveling Angle(α) | 25°-45° (The angle is adjustable) | |
| Beveling Speed | ≥2.0m/min | |
| Plate Thickness(T) | 6-30mm | 8-45mm |
| Net Weight | 175kg | 212kg |
| Dimension | 800x650x1200mm | 820x670x1250mm |
Detailed Pictures
