Key Features

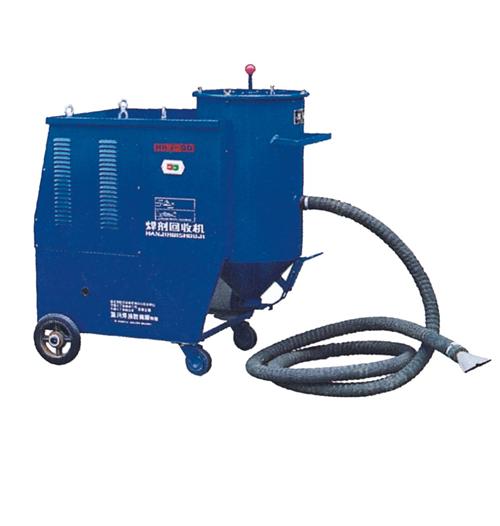

• This machine utilizes the vacuum negative pressure theory to reclaim the flux of submerged arc welding. It can be used in manual reclaiming . Also the sucker may be fixed on the submerged arc welding machine to operate along with it and to reclaim flux.
• A just cleaner was installed on the machine, during the process of reclaiming, particulate dust automatically separates from flux and then runs into the six dust cloth-bags. Press the handgrip on the stuff funnel top if you need to eliminate the dust. The dust can fall off the cloth-bag itself as a result of the compressed spring.
• It is very easy to take out the flux, pull off the lower cover to the handgrip of the discharge outlet, the flux will flow out from the stuff funnel.
Specification
| Reclaiming Capacity | 50kg |
| Length of reclaiming pipe | 4.5m |
| Stuff-suction speed |
12.6kg/min |
| Input Voltage | AC220V/50HZ |
| Power | 1.5KW |
| Rated duty cycle | 100% |
| Dimension | 103x64x112cm |
| Weight | 90kg |
