Description

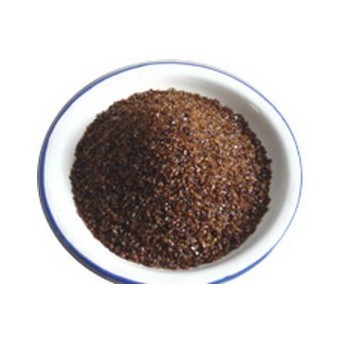

HJ431 is a kind of smelting-type,red brown to light yellow colored,glassy granulated flux with high manganese and silicon but low fluorine,mesh 8-14(2.5-1.5mm),8-40(2.5-0.45mm) and 14-40(1.5-0.45mm). Either alternating or direct current can be used and Welding wires must be connected with the positive electrode when direct current is used. The welding technology has good performance.
Usage&Cautions
● It can be applied to welding wires such as H08A,H08MnA and H10MnSi,it can weld low-carbon steel and some low-alloy steel like 16Mn and 15MnV,as well as ships,boilers and high-pressure vessels. And it also can be used for electro-slag and copper welding.
● The oil soil,moisture,iron rust and other foreign substances must be removed from the surface before welding.
● The flux must be baked under 300-400℃ for 2 hours.
Specification
(Chemical Composition)(%)
| SiO2 | CaF2 | Al2O3+MnO | CaO+MgO | FeO | S | P |
| 40～44 | 3～7 | 35～42 | 7～14 | ≤1.80 | ≤0.06 | ≤0.08 |
Mechanical Performance when applied to H08A welding wire
| Item | Yield pointбb(MPa) | Tensile Strength бb(MPa) | Elongation δ5(%) | -20℃ Impact Value(J) |
| Standard | ≥340 | ≥420～550 | ≥22% | ≥34 |
Packing details
| Pallet | 22tons/pallet |
| Bag | 25kg/bag |
Note: The price base on 1unit=1ton
