Specification
AWS E309L-16 (GB E309L-16) is a kind of ultra-low-carbon Cr23Ni13 stainless steel electrode with lime-titania type coating. AC/DC. Due to the low carbon content, E309L-16 can still resist intercrystalline corrosion led to by carbide precipitation without any stabilizers like Nb, Ti, etc.Used for stainless steel structures of the same types, composite steel, dissimilar steel, etc. in the production of equipment of synthetic fiber, petrochemical industry, etc., and also used for surfacing welding on nuclear reactors and transition layers of pressure vessel inner surfaces and welding inner parts of synthesis towers.
Chemical Composition of Deposited Metal(%)，AWS E309L-16 (GB E309L-16)
| C | Mn | Si | Cr | Ni | Mo | Cu | S | P | |
| Standard | ≤0.04 | 0.5-2.5 | ≤0.90 | 22.0-25.0 | 12.0-14.0 | ≤0.75 | ≤0.75 | ≤0.030 | ≤0.040 |
| Typical | 0.027 | 0.95 | 0.67 | 24.20 | 13.09 | 0.29 | 0.20 | 0.012 | 0.027 |
Mechanical Properties of Deposited Metal，AWS E309L-16 (GB E309L-16)
| Tensile Strength бb(MPa) | Elongation δ5(%) | |
| Standard | ≥520 | ≥25 |
| Typical | 565 | 41 |
Sizes, packing& Recommended Current(AC or DC), AWS E309L-16 (GB E309L-16)
| Size(mm) | ф2.5×350 | ф3.2×350 | ф4.0×400 | ф5.0×400 | |
|
Current(A) |
F | 50-80 | 80-120 | 120-150 | 150-200 |
| OH.VD | 50-75 | 75-110 | 85-135 | -- | |
| Packing | 5kg/box, 20kg/carton | ||||

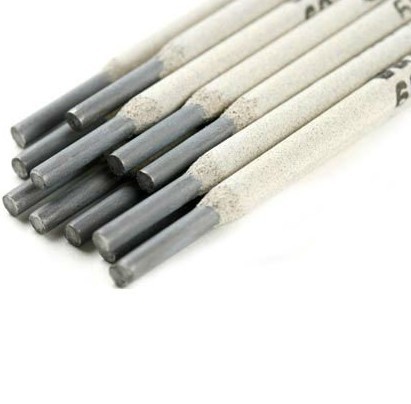

Feature picture
