AWS E308L-16 (GB E308L-16) is a lime-titanium type electrode for welding ectra-low carbon stainless steels.The weld metal shows very good resistance to inter-crystal corrosion for the carbon content in it is ≤0.04%.All positions welding are good.Wilding of extra-low carbon stainless steel 00Cr19Ni10(e.g.304L).Also welding kf 0Cr18Ni0Ti stainless steel structurex,which working conditions need to be resistance corrosion and temperature is below 300℃.Mainly be used in equipment fabrication kf synthetic funicle,fertilizer,petroleum & chemical industry etc.Before welding , you are recommended to clear away impurities,such as oil,rust,moisture etc.,and bake at the temperature from 300℃ to350℃ for 1 hour.
Chemical Composition of Deposited Metal(%)，AWS E308L-16 (GB E308L-16)
| C | Mn | Si | Cr | Ni | Mo | Cu | S | P | |
| Standard | ≤0.08 | 0.5-2.5 | ≤0.90 | 18.0-21.0 | 9.0-11.0 | ≤0.75 | ≤0.75 | ≤0.030 | ≤0.040 |
| Typical | 0.029 | 0.86 | 0.63 | 19.80 | 9.60 | 0.078 | 0.10 | 0.012 | 0.024 |
Mechanical Properties of Deposited Metal，AWS E308L-16 (GB E308L-16)
| Tensile Strength бb(MPa) | Elongation δ5(%) | |
| Standard | ≥520 | ≥35 |
| Typical | 575 | 46 |
Sizes, packing& Recommended Current(AC or DC), AWS E308L-16 (GB E308L-16)
| Size(mm) | ф2.5×350 | ф3.2×350 | ф4.0×400 | ф5.0×400 | |
|
Current(A) |
F | 60-85 | 85-120 | 115-160 | 160-200 |
| OH.VD | 50-70 | 75-105 | 85-120 | -- | |
| Packing | 5kg/box, 20kg/carton | ||||

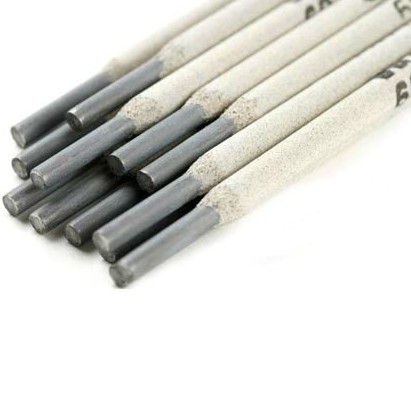

Feature picture
