Single-tank Gas Mask, Green Color
$52.00 USD
Products information
AWS E6011(GB E4311) is carbon steel welding electrode covered with a high titania potassium type coating. Both AC and DC can be applied, and it is applicable for all-position welding, including vertical-down welding. It shows a very good welding performance with small spatters, easy restrike arc and very good wled shape.Suitable for welding low carbon steel structures and low carbon galvanized plate especially applicable for vertical-down welding and intermittent welding,
Chemical Composition of Deposited Metal(%)，AWS E6011(GB E4311)
| C | Mn | Si | S | P | |
| Standard | -- | -- | -- | ≤0.035 | ≤0.040 |
Mechanical Properties of Deposited Metal，AWS E6011(GB E4311)
|
Yield pointбb(MPa)
|
Tensile Strength бb(MPa) | Elongation δ5(%) |
Impact Value(J) |
|
| -30℃ | ||||
| Standard | ≥330 | ≥420 | ≥22 | ≥27 |
| Typical | 380 | 475 | 27 | 70 |
Sizes, packing& Recommended Current(AC or DC), AWS E6011(GB E4311)
| Size(mm) | ф2.5×350 | ф3.2×350 | ф4.0×400 | ф5.0×400 | |
| Current(A) | OH,VD | 30-50 | 70-100 | 90-140 | 150-200 |
| Packing | 5kg/box, 20kg/carton | ||||

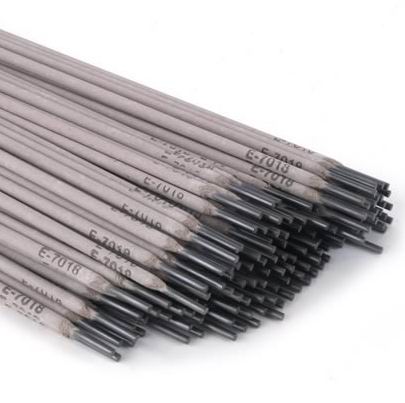

Feature picture
